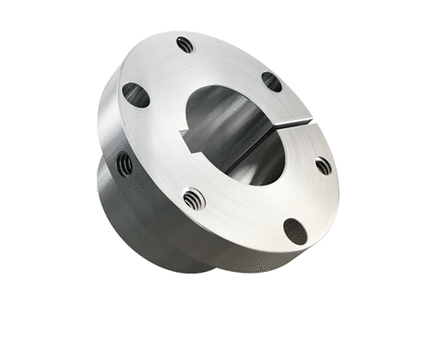

QD BushingQDBSK-0.6250-SS

Manufacturer	PCI Procal Inc.
Description	QD Bushing, 0.6250 in Bore, 3.8750 in Flg OD, 1.9380 in LTB, 300 Series Stainless Steel Material
Manufacturer Part Number	QDBSK-0.6250-SS
MI Item Number	07148113
Distributor	Motion Industries
Motion Internal Description	QDBSK-0.6250-SS QUICK-DETACH BUSHING -(SK) STYLE 0.6250" BORE - STAINLESS STEEL
E-Shop link	https://motionindustries.com/products/sku/07148113
Material	300 Series Stainless Steel
Bolt Circle Diameter	3.3130 in
Bore Diameter	0.6250 in
Bore Type	Finished w/ Keyway

Bushing Size	SK
Flange Outside Diameter	3.8750 in
Flange Thickness	0.5630 in
Length Through Bore	1.9380 in
Manufacturer UPC Number	841946117762
Maximum Bore Diameter	2.6250 in
Mounting Type	Conventional
Number of Bolt Holes	3
Screw Thread Size	5/16 in
Screw Torque	10.83 ft-lbs
Weight	4.365 lbs

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Description	Material	Bolt Circle Diameter	Bore Diameter	Bore Type	Bushing Size	Flange Outside Diameter	Flange Thickness	Length Through Bore	Manufacturer UPC Number	Maximum Bore Diameter	Mounting Type	Number of Bolt Holes	Screw Thread Size	Screw Torque	Weight
1	1	07148113	QD Bushing, 0.6250 in Bore, 3.8750 in Flg OD, 1.9380 in LTB, 300 Series Stainless Steel Material	300 Series Stainless Steel	3.3130 in	0.6250 in	Finished w/ Keyway	SK	3.8750 in	0.5630 in	1.9380 in	841946117762	2.6250 in	Conventional	3	5/16 in	10.83 ft-lbs	4.365 lbs

Documentation

Product Page

Contact the supplier
