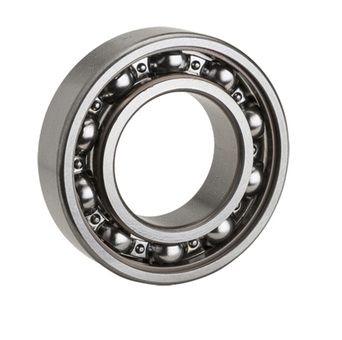

Radial/Deep Groove Ball Bearing, 6809

Manufacturer NTN Bearing Company
Description Radial/Deep Groove Ball Bearing, Round Bore, 45 mm ID, 58 mm OD, 7 mm Width, Open, CN Internal Clearance
Part Number 6809
MI Item Number 02165143
Distributor Motion Industries
Motion Internal Description 6809 BALL BRG
E-Shop link https://motionindustries.com/products/sku/02165143
Bearing Material High Carbon Chrome Steel
Bore Diameter 45 mm
Bore Type Round
Cage Material Steel
Closure Type Open
Dynamic Load Capacity 5350 N
Fillet Radius 0.3 mm
Finish/Coating Uncoated
Inner Ring Width 7 mm
Internal Clearance CN
Maximum RPM (Grease) 11000 rpm
Maximum RPM (Oil) 12000 rpm
Operating Temperature Range -40 to 120 ºC
Outer Ring Width 7 mm
Outside Diameter 58 mm
Overall Width 7 mm
Precision Rating Class 0
Row Type & Fill Slot Single Row Non-Fill Slot
Snap Ring Included Without Snap Ring
Static Load Capacity 4950 N
Weight 0.09 lbs
CAD models
Buy now
Please make sure this software has been installed.

Product selection

MI Item NumberDescriptionBearing MaterialBore DiameterBore TypeCage MaterialClosure TypeDynamic Load CapacityFillet RadiusFinish/CoatingInner Ring WidthInternal ClearanceMaximum RPM (Grease)Maximum RPM (Oil)Operating Temperature RangeOuter Ring WidthOutside DiameterOverall WidthPrecision RatingRow Type & Fill SlotSnap Ring IncludedStatic Load CapacityWeight
02165143Radial/Deep Groove Ball Bearing, Round Bore, 45 mm ID, 58 mm OD, 7 mm Width, Open, CN Internal ClearanceHigh Carbon Chrome Steel45 mmRoundSteelOpen5350 N0.3 mmUncoated7 mmCN11000 rpm12000 rpm-40 to 120 ºC7 mm58 mm7 mmClass 0Single Row Non-Fill SlotWithout Snap Ring4950 N0.09 lbs
