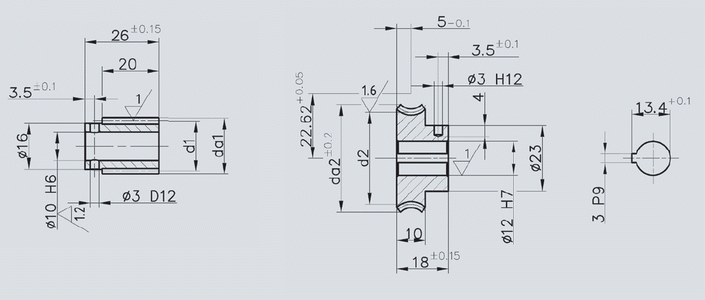

Worm gear units, hollow worms, centre distance 22, ground flanks, pressure angle 15°

Manufacturer	NOZAG
Description	Worm gear units, hollow worms, centre distance 25, ground flanks, pressure angle 15°, available only in pairs
Part number	SR22/40

CAD models

Request for quotation

Product selection

Index	Selector	type nr.	a (mm)	transmission	Ym	Modul	z1	d1 (mm)	da1 (mm)	z2	d2 (mm)	da2 (mm)	Material for worm	Material for worm wheel
1	1	SR22/3	22	3	17°36'	1	7	23.15	25.15	21	22.09	24.8		Worm wheel bronze CuZn37Mn3AI2PbSi-S40
2	2	SR22/4	22	4	19°32'	1.25	5	18.7	21.2	20	26.54	29.8		Worm wheel bronze CuZn37Mn3AI2PbSi-S40
3	3	SR22/7	22	7	11°46'	1.25	3	18.4	20.9	21	26.84	29.8		Worm wheel bronze CuZn37Mn3AI2PbSi-S40
4	4	SR22/11	22	10.5	7°41'	1.25	2	18.7	21.2	21	26.54	29.8		Worm wheel bronze CuZn37Mn3AI2PbSi-S40
5	5	SR22/21	22	21	3°48'	1.25	1	18.9	21.4	21	26.34	29.8		Worm wheel bronze CuZn37Mn3AI2PbSi-S40
6	6	SR22/30	22	30	2°50'	0.9	1	18.2	20	30	27.04	29.8		Worm wheel bronze CuZn37Mn3AI2PbSi-S40
7	7	SR22/40	22	40	2°20'	0.7	1	17.2	18.6	40	28.04	29.8		Worm wheel bronze CuZn37Mn3AI2PbSi-S40
