ODU MEDI-SNAP Receptacle

Front or rear panel mount connector, IP50, size 2

Manufacturer	ODU
Description	ODU MEDI-SNAP Receptacle Size 2, 4 contacts
Manufacturer Part Number	G52MC7-P04LPN0-0071
Data sheet	https://www.odu-productfinder.com/plastic-circular-connectors/datasheets/G52MC7-P04LPN0-0071.html

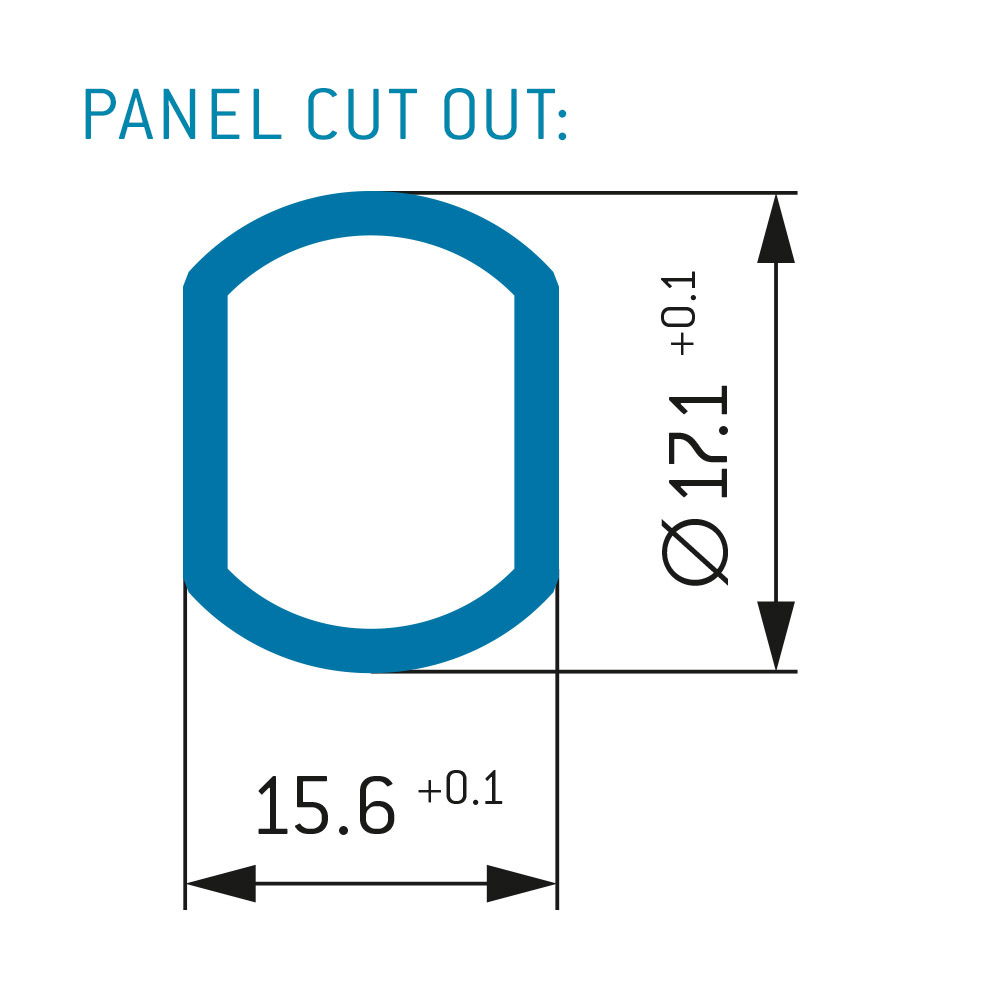

Type of connector	Front or rear panel mount receptacle
Locking-system	Break-Away, Push-Pull
Keying	60°
Number of contacts	4
Contact type	Sockets
Contact diameter	1.3 mm
Insulator material	PEEK
Termination type	Solder
Termination diameter	1.4 mm

Max. creepage and air clearance distance (Contact to contact)	1.6 mm
Nominal current single contact	15 A
Nominal current insert (per individual contact)	15 A
Test voltage	3 kV DC
Degree of protection	IP50
Protection condition	mated & unmated condition
Operating temperature	-50°C - 120°C
Mating cycles	5000
Housing	PSU gray
Contact	Cu-alloy with gold finish
Color option	Gray
Series	MEDI-SNAP

CAD models

Request for quotation

Product selection

Index	Selector	Manufacturer Part Number	Description	Type of connector	Locking-system	Keying	Number of contacts	Contact type	Contact diameter	Insulator material	Termination type	Termination diameter	Max. creepage and air clearance distance (Contact to contact)	Nominal current single contact	Nominal current insert (per individual contact)	Test voltage	Degree of protection	Protection condition	Operating temperature	Mating cycles	Housing	Contact	Color option	Series
1	1	G52MC7-P04LPN0-0071	ODU MEDI-SNAP Receptacle Size 2, 4 contacts	Front or rear panel mount receptacle	Break-Away, Push-Pull	60°	4	Sockets	1.3 mm	PEEK	Solder	1.4 mm	1.6 mm	15 A	15 A	3 kV DC	IP50	mated & unmated condition	-50°C - 120°C	5000	PSU gray	Cu-alloy with gold finish	Gray	MEDI-SNAP
2	2	G52MC7-P12LFG0-0071	ODU MEDI-SNAP Receptacle Size 2, 12 contacts	Front or rear panel mount receptacle	Break-Away, Push-Pull	60°	12	Sockets	0.7 mm	PEEK	Solder	0.85 mm	0.8 mm	7.5 A	4.125 A	1.6 kV DC	IP50	mated & unmated condition	-50°C - 120°C	5000	PSU gray	Cu-alloy with gold finish	Gray	MEDI-SNAP
3	3	G52MC7-P16LFG0-0071	ODU MEDI-SNAP Receptacle Size 2, 16 contacts	Front or rear panel mount receptacle	Break-Away, Push-Pull	60°	16	Sockets	0.7 mm	PEEK	Solder	0.85 mm	0.5 mm	7.5 A	3.75 A	1.6 kV DC	IP50	mated & unmated condition	-50°C - 120°C	5000	PSU gray	Cu-alloy with gold finish	Gray	MEDI-SNAP
4	4	G52MC7-P19LFG0-0071	ODU MEDI-SNAP Receptacle Size 2, 19 contacts	Front or rear panel mount receptacle	Break-Away, Push-Pull	60°	19	Sockets	0.7 mm	PEEK	Solder	0.85 mm	0.5 mm	7.5 A	3.375 A	1.35 kV DC	IP50	mated & unmated condition	-50°C - 120°C	5000	PSU gray	Cu-alloy with gold finish	Gray	MEDI-SNAP
5	5	G52MC7-P26LCC0-0071	ODU MEDI-SNAP Receptacle Size 2, 26 contacts	Front or rear panel mount receptacle	Break-Away, Push-Pull	60°	26	Sockets	0.5 mm	PEEK	Solder	0.45 mm	0.5 mm	4 A		1.35 kV DC	IP50	mated & unmated condition	-50°C - 120°C	5000	PSU gray	Cu-alloy with gold finish	Gray	MEDI-SNAP

Product Description

EFFICIENT – CONVENIENT – CUSTOM-FIT

ODU’s plastic connectors have proven themselves in a multitude of
application areas. Especially for mobile devices or applications with strict
space constraints, it is essential to have products that are lightweight and
make the most efficent use of space. For this reason, plastic in particular is
becoming an increasingly important material for connectors.

Benefits:

75 % lighter than metal connectors
Good grip due to special surface structure
Highly economical solution
High chemical and thermal resistance
Minimal requirements in terms of installation and maintenance
Space-saving product design
Totally hygienic – various sterilization methods possible
Patient & Operator protection levels according to IEC 60601-1 (up to 2 MOOP / 2 MOPP)
Available including cable assembly
Optional silicone-overmolded system solutions
