Parker Legris Connectic Low Pressure

Manufacturer	Parker Legris Connectic Low Pressure
Description	0139 21 00 - BI-MATERIAL CAPTIVE SEALING WASHER
PART NUMBER	0139 21 00
C	G1/2

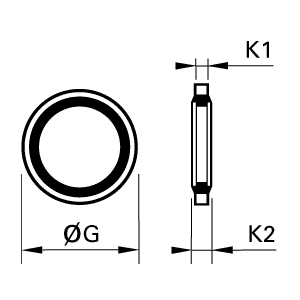

PART NUMBER	DESCRIPTION	UNIT WEIGHT	PACKED WEIGHT	QUANTITY	C	DIM G	K	K1	MAXIMUM WORKING PRESSURE	MINIMUM WORKING TEMPERATURE	MAXIMUM WORKING TEMPERATURE	BODY
0139 21 00	0139 21 00 - BI-MATERIAL CAPTIVE SEALING WASHER	,002 KG	,026 KG	10	G1/2	26 MM	1,6 MM	2,5 MM	20 BAR	-10 CE	80 CE	ZINC PLATED STEEL WITH NBR SEAL
0139 17 00	0139 17 00 - BI-MATERIAL CAPTIVE SEALING WASHER	,001 KG	,019 KG	10	G3/8	22 MM	1,2 MM	2,1 MM	20 BAR	-10 CE	80 CE	ZINC PLATED STEEL WITH NBR SEAL
0139 13 00	0139 13 00 - BI-MATERIAL CAPTIVE SEALING WASHER	,001 KG	,013 KG	10	G1/4	17 MM	1 MM	1,7 MM	20 BAR	-10 CE	80 CE	ZINC PLATED STEEL WITH NBR SEAL
0139 34 00	0139 34 00 - BI-MATERIAL CAPTIVE SEALING WASHER	,003 KG	,039 KG	10	G1	39,6 MM	1,7 MM	2,6 MM	20 BAR	-10 CE	80 CE	ZINC PLATED STEEL WITH NBR SEAL
0139 10 00	0139 10 00 - BI-MATERIAL CAPTIVE SEALING WASHER	,001 KG	,013 KG	10	G1/8	14 MM	1 MM	1,7 MM	20 BAR	-10 CE	80 CE	ZINC PLATED STEEL WITH NBR SEAL
0139 27 00	0139 27 00 - BI-MATERIAL CAPTIVE SEALING WASHER	,003 KG	,033 KG	10	G3/4	32 MM	1,5 MM	2,5 MM	20 BAR	-10 CE	80 CE	ZINC PLATED STEEL WITH NBR SEAL

0139 - BI-MATERIAL CAPTIVE SEALING WASHER
