JENKA TTL Lifting Keys — Threaded Lifting System for all load directions

Manufacturer Peikko
Description Peikko TLL12Mx133
Part Number TLL12Mx133
Load Capacity (kg) 500
CAD models
Request for quotation
Please make sure this software has been installed.

Product selection

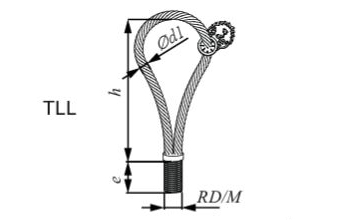

Part Numberh (mm)e (mm)Rd/MLoad Capacity (kg)Fs (kN)Weight (kg)
TLL12Mx133133221250050.1
TLL14Mx130130251480080.1
TLL16Mx13813827161200120.2
TLL18Mx15615634181600160.2
TLL20Mx18018035202000200.3
TLL24Mx21221243242500250.5
TLL30Mx24524555304000400.9
TLL36Mx29329367366300631.5
TLL42Mx35035075428000802.1
TLL52Mx4354359552125001254.6

Product Description

JENKA Lifting Keys are used to attach the crane hook, lifting slings or chains to the JENKA Lifting Insert cast into the concrete element. Different JENKA Lifting Keys are designed for different load directions.

JENKA Lifting Keys can be used with all JENKA Lifting Inserts. Different JENKA Lifting Keys have different permissible load directions.

TLL Lifting Keys are for lifting angles of up to 45°, while TLP, JL and JLW Lifting Keys are suitable for angles of up to 90° and tilt-up procedures. In addition, TLP can rotate 360° around its own axis after screwing it firmly into the insert.

The JENKA Lifting Key thread must be screwed completely inside the insert. Lifting keys with wire have a color-coded Peikko tag. JENKA Lifting Keys are marked with a unique serial number indicating that they have been preloaded with at least 2.5 times the safe working load prior to the sale. All JENKA Lifting Keys are CE marked.
