Self-lubricating METAFRAM® FP20 bearing

Cylindrical Bushing / Bearing with ferrous FP20 alloy

Manufacturer	Poral METAFRAM
Description	Cylindrical Bushing / Bearing ferrous FP20 alloy
Part Number	7 21 003 006 004

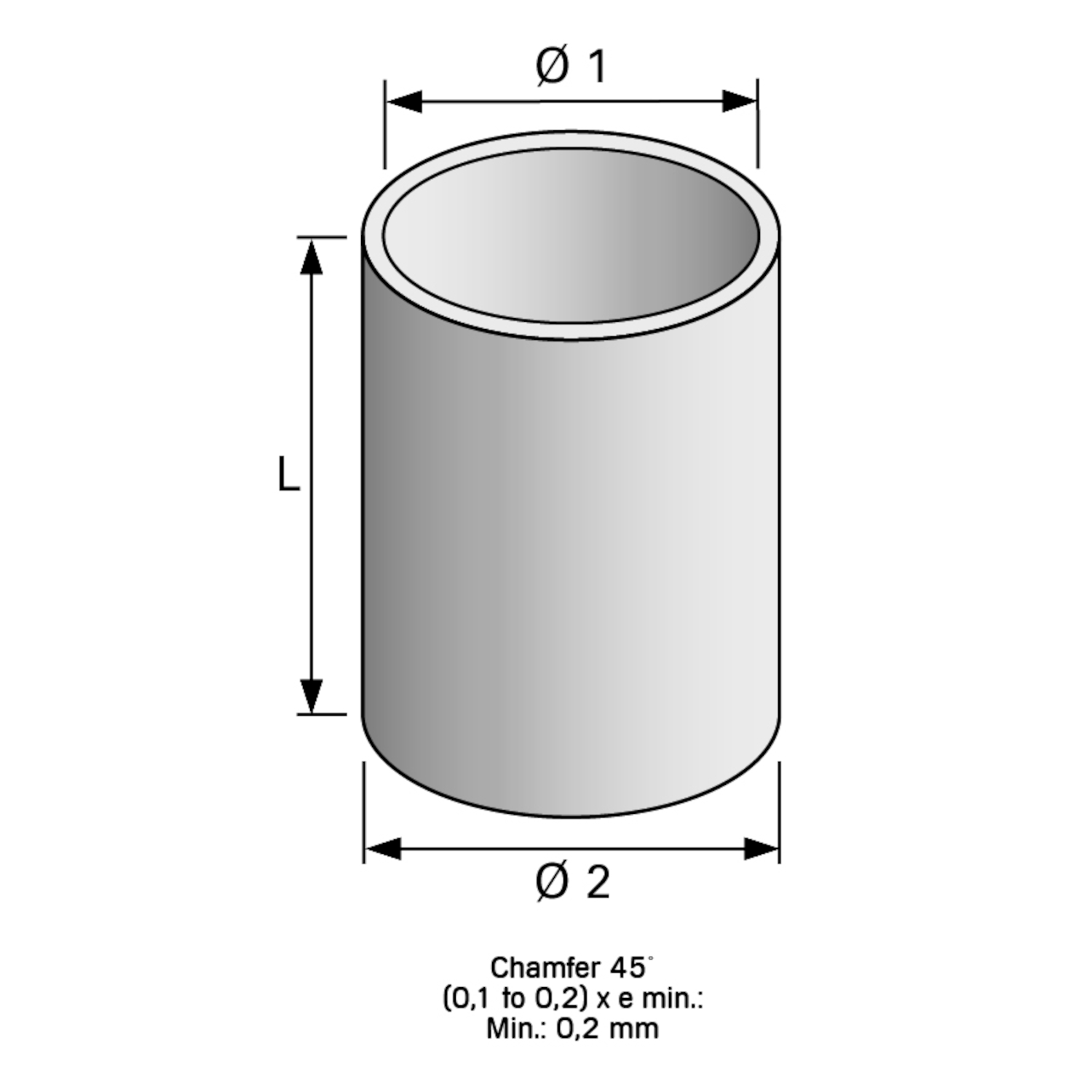

Ø internal x Ø external x L (mm	003 x 006 x 004
Material	Ferrous FP20 alloy
Mass (g)	0.53
Max. payload (daN/cm2)	225

Max. linear speed (m/s)	4
PxV max. (daN/cm2 x m/s)	18
Temperature range (˚C)	-5 / +90
Impregnation oil	MT100
Min. density (g/cm3)	5,6
Quantity	100

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Manufacturer	Description	Ø internal x Ø external x L (mm	Material	Mass (g)	Max. payload (daN/cm2)	Max. linear speed (m/s)	PxV max. (daN/cm2 x m/s)	Temperature range (˚C)	Impregnation oil	Min. density (g/cm3)	Quantity
1	1	7 21 003 006 004	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	003 x 006 x 004	Ferrous FP20 alloy	0.53	225	4	18	-5 / +90	MT100	5,6	100
2	12	7 21 003 006 010	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	003 x 006 x 010	Ferrous FP20 alloy	1.29	225	4	18	-5 / +90	MT100	5,6	100
3	23	7 21 004 008 008	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	004 x 008 x 008	Ferrous FP20 alloy	1.8	225	4	18	-5 / +90	MT100	5,6	100
4	34	7 21 006 009 006	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	006 x 009 x 006	Ferrous FP20 alloy	1.3	225	4	18	-5 / +90	MT100	5,6	100
5	45	7 21 006 009 010	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	006 x 009 x 010	Ferrous FP20 alloy	2.2000000000000002	225	4	18	-5 / +90	MT100	5,6	100
6	56	7 21 006 009 012	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	006 x 009 x 012	Ferrous FP20 alloy	2.4	225	4	18	-5 / +90	MT100	5,6	100
7	67	7 21 006 009 016	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	006 x 009 x 016	Ferrous FP20 alloy	3.4	225	4	18	-5 / +90	MT100	5,6	100
8	78	7 21 006 010 006	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	006 x 010 x 006	Ferrous FP20 alloy	1.9	225	4	18	-5 / +90	MT100	5,6	100
9	89	7 21 006 010 010	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	006 x 010 x 010	Ferrous FP20 alloy	3.1	225	4	18	-5 / +90	MT100	5,6	100
10	2	7 21 006 010 016	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	006 x 010 x 016	Ferrous FP20 alloy	4.9000000000000004	225	4	18	-5 / +90	MT100	5,6	100
11	3	7 21 006 012 006	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	006 x 012 x 006	Ferrous FP20 alloy	2.9	225	4	18	-5 / +90	MT100	5,6	100
12	4	7 21 008 011 008	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	008 x 011 x 008	Ferrous FP20 alloy	2.2000000000000002	225	4	18	-5 / +90	MT100	5,6	100
13	5	7 21 008 011 012	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	008 x 011 x 012	Ferrous FP20 alloy	3.3	225	4	18	-5 / +90	MT100	5,6	100
14	6	7 21 008 011 016	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	008 x 011 x 016	Ferrous FP20 alloy	4.4000000000000004	225	4	18	-5 / +90	MT100	5,6	100
15	7	7 21 008 012 008	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	008 x 012 x 008	Ferrous FP20 alloy	3	225	4	18	-5 / +90	MT100	5,6	100
16	8	7 21 008 012 012	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	008 x 012 x 012	Ferrous FP20 alloy	4.5999999999999996	225	4	18	-5 / +90	MT100	5,6	100
17	9	7 21 008 012 016	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	008 x 012 x 016	Ferrous FP20 alloy	6.1	225	4	18	-5 / +90	MT100	5,6	100
18	10	7 21 008 012 020	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	008 x 012 x 020	Ferrous FP20 alloy	7.6	225	4	18	-5 / +90	MT100	5,6	100
19	11	7 21 010 013 010	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	010 x 013 x 010	Ferrous FP20 alloy	3.3	225	4	18	-5 / +90	MT100	5,6	500
20	13	7 21 010 013 020	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	010 x 013 x 020	Ferrous FP20 alloy	6.6	225	4	18	-5 / +90	MT100	5,6	350
21	14	7 21 010 013 025	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	010 x 013 x 025	Ferrous FP20 alloy	8.1999999999999993	225	4	18	-5 / +90	MT100	5,6	250
22	15	7 21 010 014 010	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	010 x 014 x 010	Ferrous FP20 alloy	4.5	225	4	18	-5 / +90	MT100	5,6	500
23	16	7 21 010 014 016	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	010 x 014 x 016	Ferrous FP20 alloy	7.3	225	4	18	-5 / +90	MT100	5,6	300
24	17	7 21 010 014 020	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	010 x 014 x 020	Ferrous FP20 alloy	9.1	225	4	18	-5 / +90	MT100	5,6	250
25	18	7 21 010 015 010	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	010 x 015 x 010	Ferrous FP20 alloy	5.9	225	4	18	-5 / +90	MT100	5,6	500
26	19	7 21 012 015 012	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	012 x 015 x 012	Ferrous FP20 alloy	4.6399999999999997	225	4	18	-5 / +90	MT100	5,6	500
27	20	7 21 012 015 016	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	012 x 015 x 016	Ferrous FP20 alloy	6.2	225	4	18	-5 / +90	MT100	5,6	350
28	21	7 21 012 015 020	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	012 x 015 x 020	Ferrous FP20 alloy	7.2	225	4	18	-5 / +90	MT100	5,6	250
29	22	7 21 012 016 012	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	012 x 016 x 012	Ferrous FP20 alloy	6.3	225	4	18	-5 / +90	MT100	5,6	400
30	24	7 21 012 016 016	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	012 x 016 x 016	Ferrous FP20 alloy	8.4	225	4	18	-5 / +90	MT100	5,6	300
31	25	7 21 012 016 020	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	012 x 016 x 020	Ferrous FP20 alloy	10.5	225	4	18	-5 / +90	MT100	5,6	200
32	26	7 21 012 016 025	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	012 x 016 x 025	Ferrous FP20 alloy	13.1	225	4	18	-5 / +90	MT100	5,6	200
33	27	7 21 012 017 012	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	012 x 017 x 012	Ferrous FP20 alloy	8.3000000000000007	225	4	18	-5 / +90	MT100	5,6	300
34	28	7 21 014 018 014	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	014 x 018 x 014	Ferrous FP20 alloy	8.5	225	4	18	-5 / +90	MT100	5,6	250
35	29	7 21 014 018 022	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	014 x 018 x 022	Ferrous FP20 alloy	13.2	225	4	18	-5 / +90	MT100	5,6	150
36	30	7 21 014 020 014	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	014 x 020 x 014	Ferrous FP20 alloy	13.4	225	4	18	-5 / +90	MT100	5,6	250
37	31	7 21 014 020 028	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	014 x 020 x 028	Ferrous FP20 alloy	27	225	4	18	-5 / +90	MT100	5,6	100
38	32	7 21 015 019 016	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	015 x 019 x 016	Ferrous FP20 alloy	10.3	225	4	18	-5 / +90	MT100	5,6	200
39	33	7 21 015 019 020	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	015 x 019 x 020	Ferrous FP20 alloy	12.9	225	4	18	-5 / +90	MT100	5,6	150
40	35	7 21 016 020 016	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	016 x 020 x 016	Ferrous FP20 alloy	10.9	225	4	18	-5 / +90	MT100	5,6	200
41	36	7 21 016 020 020	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	016 x 020 x 020	Ferrous FP20 alloy	13.6	225	4	18	-5 / +90	MT100	5,6	150
42	37	7 21 016 020 025	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	016 x 020 x 025	Ferrous FP20 alloy	17	225	4	18	-5 / +90	MT100	5,6	125
43	38	7 21 016 020 032	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	016 x 020 x 032	Ferrous FP20 alloy	21.8	225	4	18	-5 / +90	MT100	5,6	75
44	39	7 21 016 022 016	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	016 x 022 x 016	Ferrous FP20 alloy	17.100000000000001	225	4	18	-5 / +90	MT100	5,6	150
45	40	7 21 016 022 020	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	016 x 022 x 020	Ferrous FP20 alloy	21.6	225	4	18	-5 / +90	MT100	5,6	125
46	41	7 21 016 022 025	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	016 x 022 x 025	Ferrous FP20 alloy	27	225	4	18	-5 / +90	MT100	5,6	100
47	42	7 21 018 022 018	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	018 x 022 x 018	Ferrous FP20 alloy	13.5	225	4	18	-5 / +90	MT100	5,6	125
48	43	7 21 018 022 022	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	018 x 022 x 022	Ferrous FP20 alloy	16.7	225	4	18	-5 / +90	MT100	5,6	125
49	44	7 21 018 024 022	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	018 x 024 x 022	Ferrous FP20 alloy	26	225	4	18	-5 / +90	MT100	5,6	100
50	46	7 21 020 024 016	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	020 x 024 x 016	Ferrous FP20 alloy	13.2	225	4	18	-5 / +90	MT100	5,6	150
51	47	7 21 020 024 020	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	020 x 024 x 020	Ferrous FP20 alloy	16.7	225	4	18	-5 / +90	MT100	5,6	100
52	48	7 21 020 024 025	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	020 x 024 x 025	Ferrous FP20 alloy	20.8	225	4	18	-5 / +90	MT100	5,6	75
53	49	7 21 020 024 032	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	020 x 024 x 032	Ferrous FP20 alloy	26.6	225	4	18	-5 / +90	MT100	5,6	60
54	50	7 21 020 026 016	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	020 x 026 x 016	Ferrous FP20 alloy	20.8	225	4	18	-5 / +90	MT100	5,6	100
55	51	7 21 020 026 020	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	020 x 026 x 020	Ferrous FP20 alloy	25.8	225	4	18	-5 / +90	MT100	5,6	100
56	52	7 21 020 026 025	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	020 x 026 x 025	Ferrous FP20 alloy	32.200000000000003	225	4	18	-5 / +90	MT100	5,6	75
57	53	7 21 020 026 032	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	020 x 026 x 032	Ferrous FP20 alloy	41.8	225	4	18	-5 / +90	MT100	5,6	100
58	54	7 21 022 027 018	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	022 x 027 x 018	Ferrous FP20 alloy	20.6	225	4	18	-5 / +90	MT100	5,6	100
59	55	7 21 022 027 022	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	022 x 027 x 022	Ferrous FP20 alloy	25.2	225	4	18	-5 / +90	MT100	5,6	75
60	57	7 21 025 030 020	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	025 x 030 x 020	Ferrous FP20 alloy	26	225	4	18	-5 / +90	MT100	5,6	60
61	58	7 21 025 030 025	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	025 x 030 x 025	Ferrous FP20 alloy	32.200000000000003	225	4	18	-5 / +90	MT100	5,6	100
62	59	7 21 025 030 032	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	025 x 030 x 032	Ferrous FP20 alloy	41.6	225	4	18	-5 / +90	MT100	5,6	90
63	60	7 21 025 032 020	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	025 x 032 x 020	Ferrous FP20 alloy	37.299999999999997	225	4	18	-5 / +90	MT100	5,6	60
64	61	7 21 025 032 025	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	025 x 032 x 025	Ferrous FP20 alloy	47.2	225	4	18	-5 / +90	MT100	5,6	100
65	62	7 21 025 032 032	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	025 x 032 x 032	Ferrous FP20 alloy	59.2	225	4	18	-5 / +90	MT100	5,6	72
66	63	7 21 030 038 024	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	030 x 038 x 024	Ferrous FP20 alloy	61.7	225	4	18	-5 / +90	MT100	5,6	75
67	64	7 21 030 038 030	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	030 x 038 x 030	Ferrous FP20 alloy	77.099999999999994	225	4	18	-5 / +90	MT100	5,6	60
68	65	7 21 030 038 038	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	030 x 038 x 038	Ferrous FP20 alloy	97.7	225	4	18	-5 / +90	MT100	5,6	45
69	66	7 21 032 038 032	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	032 x 038 x 032	Ferrous FP20 alloy	62.9	225	4	18	-5 / +90	MT100	5,6	45
70	68	7 21 035 044 022	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	035 x 044 x 022	Ferrous FP20 alloy	73.2	225	4	18	-5 / +90	MT100	5,6	60
71	69	7 21 035 044 028	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	035 x 044 x 028	Ferrous FP20 alloy	93.2	225	4	18	-5 / +90	MT100	5,6	48
72	70	7 21 035 044 035	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	035 x 044 x 035	Ferrous FP20 alloy	116.5	225	4	18	-5 / +90	MT100	5,6	36
73	71	7 21 036 042 022	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	036 x 042 x 022	Ferrous FP20 alloy	50.2	225	4	18	-5 / +90	MT100	5,6	60
74	72	7 21 040 046 025	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	040 x 046 x 025	Ferrous FP20 alloy	60	225	4	18	-5 / +90	MT100	5,6	48
75	73	7 21 040 046 032	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	040 x 046 x 032	Ferrous FP20 alloy	77.3	225	4	18	-5 / +90	MT100	5,6	36
76	74	7 21 040 046 040	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	040 x 046 x 040	Ferrous FP20 alloy	96.6	225	4	18	-5 / +90	MT100	5,6	36
77	75	7 21 040 050 025	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	040 x 050 x 025	Ferrous FP20 alloy	106.5	225	4	18	-5 / +90	MT100	5,6	44
78	76	7 21 040 050 032	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	040 x 050 x 032	Ferrous FP20 alloy	136.19999999999999	225	4	18	-5 / +90	MT100	5,6	33
79	77	7 21 040 050 040	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	040 x 050 x 040	Ferrous FP20 alloy	170.2	225	4	18	-5 / +90	MT100	5,6	30
80	79	7 21 040 050 050	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	040 x 050 x 050	Ferrous FP20 alloy	210.5	225	4	18	-5 / +90	MT100	5,6	22
81	80	7 21 045 051 028	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	045 x 051 x 028	Ferrous FP20 alloy	75.599999999999994	225	4	18	-5 / +90	MT100	5,6	36
82	81	7 21 045 051 045	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	045 x 051 x 045	Ferrous FP20 alloy	121.5	225	4	18	-5 / +90	MT100	5,6	18
83	82	7 21 045 055 035	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	045 x 055 x 035	Ferrous FP20 alloy	159.4	225	4	18	-5 / +90	MT100	5,6	21
84	83	7 21 045 056 036	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	045 x 056 x 036	Ferrous FP20 alloy	189.1	225	4	18	-5 / +90	MT100	5,6	21
85	84	7 21 050 056 032	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	050 x 056 x 032	Ferrous FP20 alloy	95.3	225	4	18	-5 / +90	MT100	5,6	21
86	85	7 21 050 060 050	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	050 x 060 x 050	Ferrous FP20 alloy	257.5	225	4	18	-5 / +90	MT100	5,6	12
87	86	7 21 060 070 060	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	060 x 070 x 060	Ferrous FP20 alloy	365	225	4	18	-5 / +90	MT100	5,6	8
88	87	7 21 060 070 090	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	060 x 070 x 090	Ferrous FP20 alloy	547.20000000000005	225	4	18	-5 / +90	MT100	5,6	5
89	88	7 21 070 080 120	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	070 x 080 x 120	Ferrous FP20 alloy	942	225	4	18	-5 / +90	MT100	5,6	1
90	90	7 21 080 100 120	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	080 x 100 x 120	Ferrous FP20 alloy	2135	225	4	18	-5 / +90	MT100	5,6	1
91	91	7 21 100 120 120	Poral METAFRAM	Cylindrical Bushing / Bearing ferrous FP20 alloy	100 x 120 x 120	Ferrous FP20 alloy	2600	225	4	18	-5 / +90	MT100	5,6	1

Product Description

METAFRAM® sintered bushings / bearings are inherently self-lubricating. They allow use over a wide range of speed and load while having a long service life.

The self-lubricating function helps reduce maintenance costs and increase product life.
The uses are multiple: industrial machines, automobile, electric motor, agricultural machinery, aeronautics, etc ...

Documentation

Dowload Our Brochure
