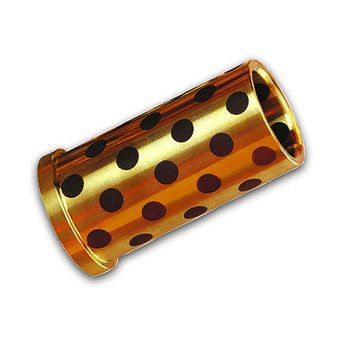

REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS

NF E 63-508 / ISO 8018

Manufacturer	RABOURDIN
Description	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=50 L=160 mm
Manufacturer Part Number	1052-50-160
E-Shop link	https://eshop.rabourdin.fr/en/20-bague-bronze-a-collerette-sans-plot-de-centrage-avec-inserts-graphite.html
D mm	50
L mm	160

CAD models

Request for quotation

Product selection

Index	Selector	Manufacturer Part Number	Description	D mm	L mm
1	1	1052-16-25	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=16 L=25 mm	16	25
2	12	1052-16-32	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=16 L=32 mm	16	32
3	23	1052-16-40	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=16 L=40 mm	16	40
4	34	1052-16-50	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=16 L=50 mm	16	50
5	39	1052-16-63	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=16 L=63 mm	16	63
6	2	1052-20-25	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=20 L=25 mm	20	25
7	3	1052-20-32	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=20 L=32 mm	20	32
8	4	1052-20-40	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=20 L=40 mm	20	40
9	5	1052-20-50	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=20 L=50 mm	20	50
10	6	1052-20-63	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=20 L=63 mm	20	63
11	7	1052-20-80	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=20 L=80 mm	20	80
12	8	1052-25-25	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=25 L=25 mm	25	25
13	9	1052-25-32	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=25 L=32 mm	25	32
14	10	1052-25-40	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=25 L=40 mm	25	40
15	11	1052-25-50	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=25 L=50 mm	25	50
16	13	1052-25-63	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=25 L=63 mm	25	63
17	14	1052-25-80	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=25 L=80 mm	25	80
18	15	1052-25-100	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=25 L=100 mm	25	100
19	16	1052-32-32	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=32 L=32 mm	32	32
20	17	1052-32-40	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=32 L=40 mm	32	40
21	18	1052-32-50	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=32 L=50 mm	32	50
22	19	1052-32-63	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=32 L=63 mm	32	63
23	20	1052-32-80	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=32 L=80 mm	32	80
24	21	1052-32-100	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=32 L=100 mm	32	100
25	22	1052-32-125	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=32 L=125 mm	32	125
26	24	1052-40-40	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=40 L=40 mm	40	40
27	25	1052-40-50	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=40 L=50 mm	40	50
28	26	1052-40-63	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=40 L=63 mm	40	63
29	27	1052-40-80	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=40 L=80 mm	40	80
30	28	1052-40-100	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=40 L=100 mm	40	100
31	29	1052-40-125	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=40 L=125 mm	40	125
32	30	1052-40-160	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=40 L=160 mm	40	160
33	31	1052-50-50	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=50 L=50 mm	50	50
34	32	1052-50-63	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=50 L=63 mm	50	63
35	33	1052-50-80	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=50 L=80 mm	50	80
36	35	1052-50-100	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=50 L=100 mm	50	100
37	36	1052-50-125	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=50 L=125 mm	50	125
38	37	1052-50-160	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=50 L=160 mm	50	160
39	38	1052-50-200	REF. 1052 HEADED GUIDE BUSH WITHOUT CENTERING PLUG WITH GRAPHITE INSERTS D=50 L=200 mm	50	200

Documentation

CATALOG'S PAGE
