Roxtec GHM transit

Transit for high cable density and large cables.

Manufacturer	Roxtec
Description	GHM 6x1/26 AISI316
Part Number	Roxtec 5GHM000004746+112026
IP rating	IP 66/67

CAD models

Request for quotation

Product selection

Index	Selector	Description	Capacity [pcs]	Config. (Ø<sub>min</sub>-Ø<sub>max</sub>) [mm]	External dim. WxHxD [mm]	Aperture dim. WxH [mm]	IP rating	Material	Weight [kg]	Part Number
1	1	GHM 6x1/18 AISI316	18	12x (9.5-32.5), 6x (3.5-16.5)	252.5 x 350 x 60	148 x 245	IP 66/67	Stainless steel	8.5	Roxtec 5GHM000004746+112023
2	7	GHM 6x1/18 GALV	18	12x (9.5-32.5), 6x (3.5-16.5)	252.5 x 350 x 60	148 x 245	IP 66/67	Galvanized steel	8.5	Roxtec 5GHM000004089+112013
3	8	GHM 6x1/19 AISI316	19	2x (28.0-54.0), 3x (9.5-32.5), 8x (10.0-25.0), 6x (3.5-16.5)	252.5 x 350 x 60	148 x 245	IP 66/67	Stainless steel	8.5	Roxtec 5GHM000004746+112024
4	9	GHM 6x1/19 GALV	19	2x (28.0-54.0), 3x (9.5-32.5), 8x (10.0-25.0), 6x (3.5-16.5)	252.5 x 350 x 60	148 x 245	IP 66/67	Galvanized steel	8.5	Roxtec 5GHM000004089+112014
5	10	GHM 6x1/26 AISI316	26	6x (9.5-32.5), 8x (10.0-25.0), 12x (3.5-16.5)	252.5 x 350 x 60	148 x 245	IP 66/67	Stainless steel	8.5	Roxtec 5GHM000004746+112026
6	11	GHM 6x1/26 GALV	26	6x (9.5-32.5), 8x (10.0-25.0), 12x (3.5-16.5)	252.5 x 350 x 60	148 x 245	IP 66/67	Galvanized steel	8.5	Roxtec 5GHM000004089+112021
7	12	GHM 2x1 AISI316	-	Packing space 120 x 60	252.5 x 233 x 60	148 x 128	IP 66/67	Stainless steel	3.4	Roxtec 5GHM000003379
8	13	GHM 2x1 GALV	-	Packing space 120 x 60	252.5 x 233 x 60	148 x 128	IP 66/67	Galvanized steel	3.4	Roxtec 5GHM000006803
9	14	GHM 4x1 AISI316	-	Packing space 120 x 120	252.5 x 291.5 x 60	148 x 187	IP 66/67	Stainless steel	4.0	Roxtec 5GHM000003380
10	2	GHM 4x1 GALV	-	Packing space 120 x 120	252.5 x 291.5 x 60	148 x 187	IP 66/67	Galvanized steel	4.0	Roxtec 5GHM000005427
11	3	GHM 6x1 AISI316	-	Packing space 120 x 180	252.5 x 350 x 60	148 x 245	IP 66/67	Stainless steel	4.7	Roxtec 5GHM000004746
12	4	GHM 6x1 GALV	-	Packing space 120 x 180	252.5 x 350 x 60	148 x 245	IP 66/67	Galvanized steel	4.7	Roxtec 5GHM000004089
13	5	GHM 8x1 AISI316	-	Packing space 120 x 240	252.5 x 410 x 60	148 x 305	IP 66/67	Stainless steel	5.4	Roxtec 5GHM000003386
14	6	GHM 8x1 GALV	-	Packing space 120 x 240	252.5 x 410 x 60	148 x 305	IP 66/67	Galvanized steel	5.4	Roxtec GHM8000000115

Product Description

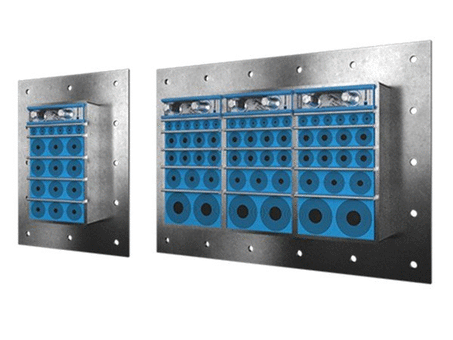

The Roxtec GHM is a light-weight cable entry seal which is attached by bolting and includes a sealing strip to seal against the structure.
The transit frame is available in different materials and in a single or various combinations of openings.
The sealing modules are adaptable to cables and pipes of different sizes, and can be used to build in spare capacity in the transit.

• Fire rated
• Gas-tight
• Watertight
• Dust-tight
• Rodent resistant
• Area efficient

Documentation

Roxtec GHM transit web page

Roxtec GHM transit installation instructions

Roxtec product overview

Roxtec GHM transit installation video
