Heat Shield - Heat Resistant Grade - Hole Processing JAHHA

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Heat Shield - Heat Resistant Grade - Hole Processing JAHHA-2H-20-20-3-F9-G5-N3
Part number	JAHHA-2H-20-20-3-F9-G5-N3

CAD models

Product selection

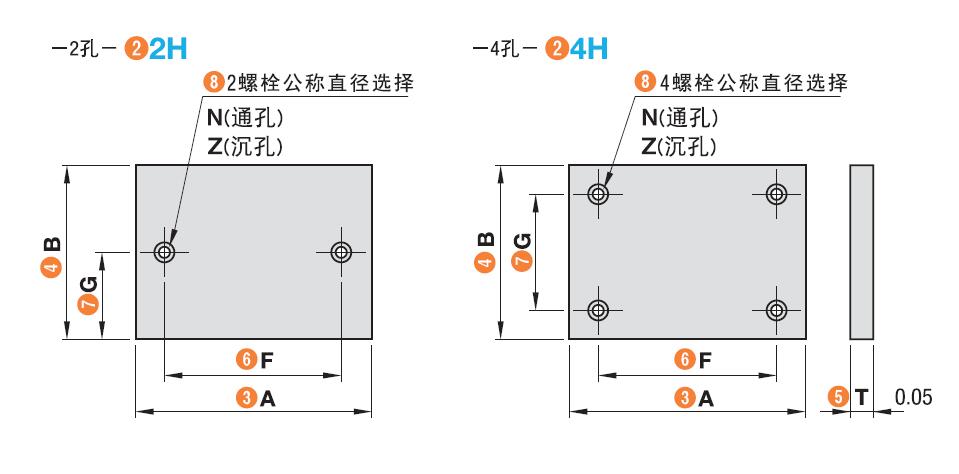

Code	Tolerance	A	B	T	F	G
JAHHA	-	20～800	20～600	3	9～791	5～595/9～591
JAHHA	-	20～800	20～600	5	9～791	5～595/9～591
JAHHA	-	20～800	20～600	10	9～791	5～595/9～591
JAHHA	-	20～800	20～600	15	9～791	5～595/9～591
JAHHA	P	20～200	20～200	5	9～191	5～195/9～191
JAHHA	P	20～200	20～200	10	9～191	5～195/9～191

Hole Number

Hole

N:Through Hole

N/Z
