Heat Shield - Standard - Impact Resistant - Hole Processing JAHN

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Heat Shield - Standard - Impact Resistant JAHN2H-20-20-3-F9-G5-N3
Part number	JAHN2H-20-20-3-F9-G5-N3

CAD models

Product selection

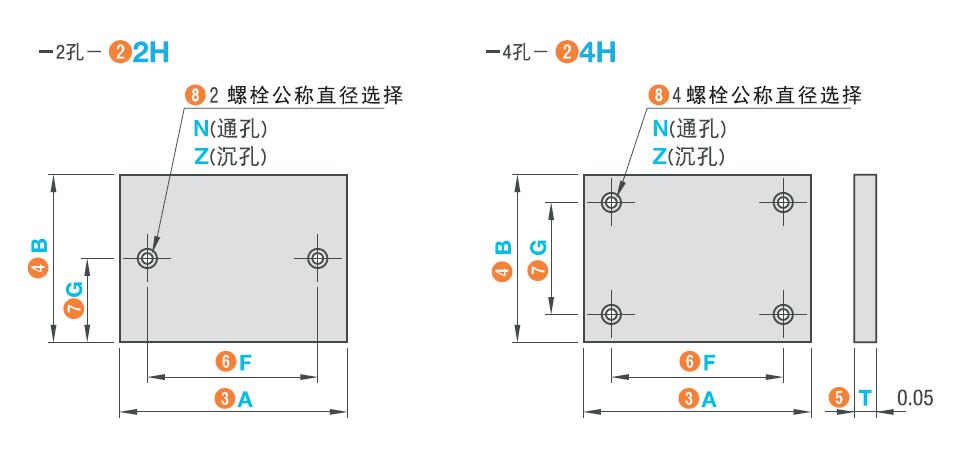

Code	Hole Number	A	B	T	F	G
JAHN	2H	20～800	20～600	3	9～791	5～595
JAHN	2H	20～800	20～600	5	9～791	5～595
JAHN	2H	20～800	20～600	10	9～791	5～595
JAHN	2H	20～800	20～600	15	9～791	5～595
JAHN	4H	20～800	20～600	3	9～791	9～591
JAHN	4H	20～800	20～600	5	9～791	9～591
JAHN	4H	20～800	20～600	10	9～791	9～591
JAHN	4H	20～800	20～600	15	9～791	9～591

Hole

N:Through Hole

N/Z
