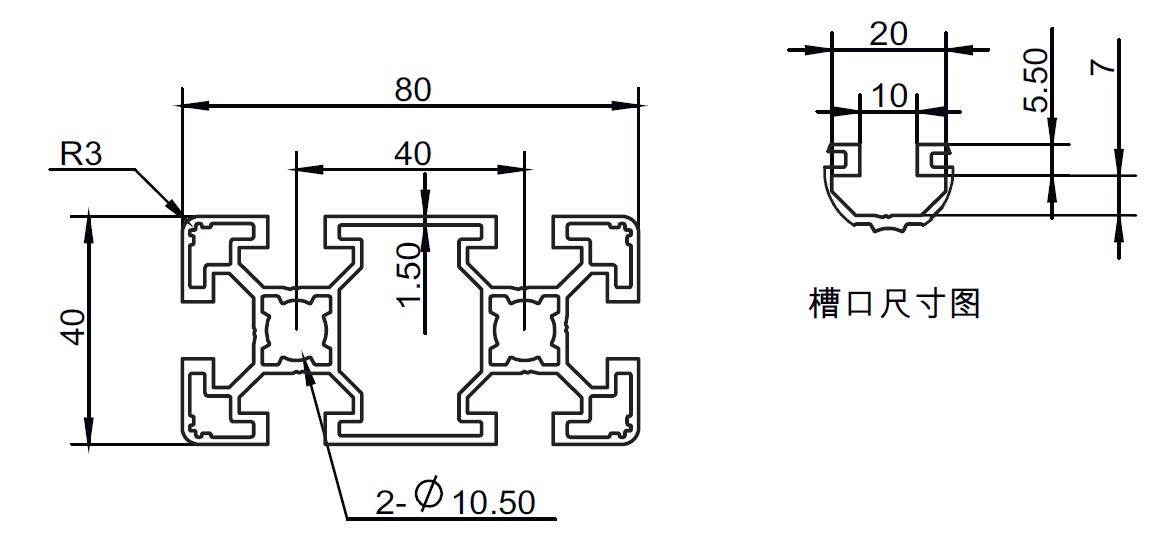

JIS Standard Aluminum Alloy Profile-J40 Series-HA01-J-4080B-1200

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	JIS Standard Aluminum Alloy Profile-J40 Series HA01-J-4080B-50
Part number	HA01-J-4080B-50

CAD models

Product selection

	Code	Series	Material	Surface Treatment	Type	L	Moment of inertian Lx (mm4)	Moment of inertian Ly (mm4)	Moment of resistance Wx (mm3)	Moment of resistance Wy (mm3)	Weight per metre (kg/m)	Superficial Area (mm2)
	HA01	J	6063-T5	Sandblasting Oxidation	4080B	50-6000	13.5x10^4	53.3x10^4	3.4x10^3	26.65x10^3	2.2	792
	HA02	J	6063-T5	Black Oxidation	4080B	50-6000	13.5x10^4	53.3x10^4	3.4x10^3	26.65x10^3	2.2	792

Optional Machining at One End

Optional Machining at the Other End

Not Machining Profile
