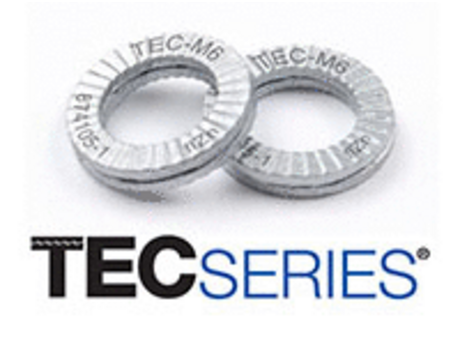

TEC Series Alloy Steel Washers SCM435 or 4130

Manufacturer	SHEREX
Description	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 1.098 Inch, Outer Diameter (C) 1.535 Inch
Part Number	TEC-1
Material	SCM435 or 4130 Alloy Steel
Industry Standards/Compliance	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS

Inner Diameter (A) (Inch)	1.098
Outer Diameter (C) (Inch)	1.535
Thickness (EE) (Inch)	0.134
Bolt Size (mm)
Bolt Size (Inch)	1

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Part Number	Description	Material	Product Page	Industry Standards/Compliance	Inner Diameter (A) (Inch)	Outer Diameter (C) (Inch)	Thickness (EE) (Inch)	Bolt Size (mm)	Bolt Size (Inch)
1		1	TEC-M4	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.173 Inch, Outer Diameter (C) 0.299 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.173	0.299	0.071	M4	#8
2		12	TEC-M5	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.213 Inch, Outer Diameter (C) 0.354 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.213	0.354	0.071	M5	#10
3		23	TEC-M6	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.256 Inch, Outer Diameter (C) 0.425 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.256	0.425	0.071	M6
4		24	TEC-1/4	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.283 Inch, Outer Diameter (C) 0.453 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.283	0.453	0.098		1/4
5		25	TEC-M8	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.343 Inch, Outer Diameter (C) 0.531 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.343	0.531	0.098	M8
6		26	TEC-3/8	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.406 Inch, Outer Diameter (C) 0.654 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.406	0.654	0.098		3/8
7		27	TEC-M10	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.421 Inch, Outer Diameter (C) 0.654 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.421	0.654	0.098	M10
8	No CAD available	28	TEC-7/16	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.45 Inch, Outer Diameter (C) 0.73 Inch	SCM435 ot 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.45	0.73	0.1	M11
9		29	TEC-M12	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.512 Inch, Outer Diameter (C) 0.768 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.512	0.768	0.098	M12
10		2	TEC-1/2	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.531 Inch, Outer Diameter (C) 0.768 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.531	0.768	0.098		1/2
11		3	TEC-M14	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.598 Inch, Outer Diameter (C) 0.906 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.598	0.906	0.134	M14
12		4	TEC-M16	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.669 Inch, Outer Diameter (C) 1 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.669	1	0.134	M16
13		5	TEC-M18	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.768 Inch, Outer Diameter (C) 1.142 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.768	1.142	0.134	M18
14		6	TEC-3/4	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.787 Inch, Outer Diameter (C) 1.209 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.787	1.209	0.134		3/4
15		7	TEC-M20	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.843 Inch, Outer Diameter (C) 1.209 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.843	1.209	0.134	M20
16	No CAD available	8	TEC-7/8	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.92 Inch, Outer Diameter (C) 1.36 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.92	1.36	0.13	M22
17		9	TEC-M24	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.996 Inch, Outer Diameter (C) 1.535 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.996	1.535	0.134	M24
18		10	TEC-1	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 1.098 Inch, Outer Diameter (C) 1.535 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	1.098	1.535	0.134		1
19		11	TEC-M27	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 1.118 Inch, Outer Diameter (C) 1.654 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	1.118	1.654	0.228	M27
20		13	TEC-M30	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 1.236 Inch, Outer Diameter (C) 1.85 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	1.236	1.85	0.228	M30
21	No CAD available	14	TEC-M33	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 1.354 Inch, Outer Diameter (C) 1.909 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	1.354	1.909	0.228	M33
22		15	TEC-M36	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 1.472 Inch, Outer Diameter (C) 2.165 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	1.472	2.165	0.228	M36
23		16	TEC-M11	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.449 Inch, Outer Diameter (C) 0.728 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.449	0.728	0.098	M11
24		17	TEC-M22	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.921 Inch, Outer Diameter (C) 1.358 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.921	1.358	0.134	M22
25		18	TEC-M3.5	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.154 Inch, Outer Diameter (C) 0.299 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.154	0.299	0.071	M3.5	#6
26		19	TEC-M3	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 0.134 Inch, Outer Diameter (C) 0.276 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	0.134	0.276	0.071	M3	#5
27		20	TEC-M39	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 1.591 Inch, Outer Diameter (C) 2.303 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	1.591	2.303	0.228	M39
28		21	TEC-M42	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 1.701 Inch, Outer Diameter (C) 2.48 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	1.701	2.48	0.228	M42
29		22	TEC-M45	TEC Series Alloy Steel Washers SCM435 or 4130, Inner Diameter (A) 1.819 Inch, Outer Diameter (C) 2.756 Inch	SCM435 or 4130 Alloy Steel	Product Page	ISO 9001:2008, ISO TS16949, MIL-STD-1312-7, RoHS	1.819	2.756	0.276	M45

Product Description

TEC Series washers keep joints secure using tension, not friction as with traditional washers. TEC washers consist of a pair of washers with cams on one side and seizing ridges on the other. The cam sides are mated together with a mild adhesive, and installed between the bolt head or nut and the joint material. As the bolt or nut is tightened, the seizing ridges cause one half of the washer to be seated to the bolt or nut, while the other half is seated to the joint material.
