Self-Locking, 220, KSI, SL405

Manufacturer	Shur-Lok
Description	Self-Locking, 220, KSI, SL405, Thread .2500-28 UNJF-38 - SL405-4DSPI
Part number	SL405-4DSPI
Thread	.2500-28 UNJF-38
Material	Nut: 4340 Alloy Steel, Barrel: 4340 Alloy Steel, Pins: 300 Series Cres
Finish	Nut: Cadmium Plate per AMS2401, Barrel: Cadmium Plate per AMS2401, Pin: Passivate per AMS-QQ-P-35

CAD models

Request for quotation

Product selection

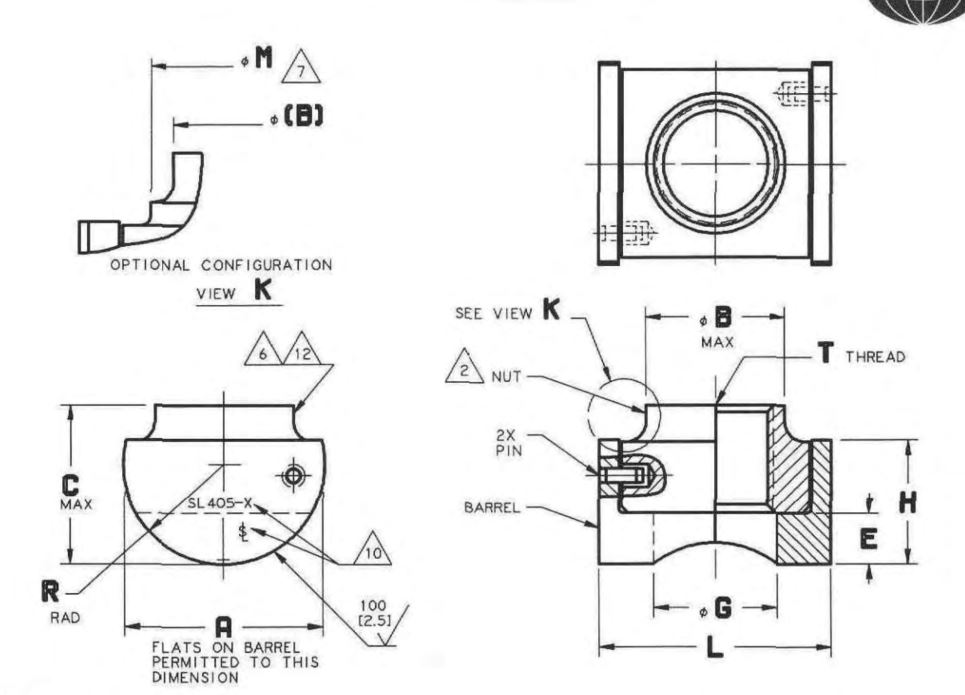

Index	Selector	Series	Size Code	Thread	A min (inch)	ø B max (inch)	C max (inch)	E (inch)	G (inch)	H (inch)	L (inch)	ø M max (inch)	R (inch)
1	64	SL405	4	.2500-28 UNJF-38	.513 [13.03]	.375 [9.52]	.406 [10.31]	.125 [3.18]	.281 [7.14]	.320 [8.13]	.625 [15.88]	.400 [10.16]	.2625 [6.668]
2	65	SL405	5	.3125-24 UNJF-38	.575 [14.60]	.406 [10.31]	.468 [11.89]	.125 [3.18]	.344 [8.74]	.360 [9.14]	.688 [17.48]	.447 [11.35]	.2937 [7.455]
3	66	SL405	6	.3750-24 UNJF-38	.669 [16.99]	.500 [12.70]	.531 [13.49]	.156 [3.96]	.406 [10.31]	.420 [10.47]	.750 [19.05]	.541 [13.74]	.3405 [8.649]
4	67	SL405	7	.4375-20 UNJF-38	.763 [19.38]	.563 [14.30]	.625 [15.88]	.188 [4.78]	.469 [11.91]	.470 [11.94]	.875 [22.22]	.619 [15.72]	.3875 [9.842]
5	68	SL405	8	.5000-20 UNJF-38	.857 [21.77]	.625 [15.88]	.703 [17.86]	.219 [5.56]	.531 [13.49]	.540 [13.72]	1.000 [25.40]	.697 [17.70]	.4345 [11.036]
6	69	SL405	9	.5625-18 UNJF-38	.950 [24.13]	.688 [17.48]	.765 [19.43]	.250 [6.35]	.594 [15.09]	.590 [14.99]	1.094 [27.79]	.790 [20.07]	.4810 [12.217]
7	70	SL405	10	.6250-18 UNJF-38	1.045 [26.54]	.750 [19.05]	.844 [21.44]	.281 [7.14]	.656 [16.66]	.650 [16.51]	1.125 [28.57]	.885 [22.48]	.5285 [13.424]
8	71	SL405	12	.7500-16 UNJF-38	1.263 [32.08]	.875 [22.22]	1.062 [26.97]	.344 [8.74]	.781 [19.84]	.750 [19.05]	1.500 [38.10]	1.088 [27.64]	.6375 [16.192]
9	72	SL405	14	.8750-14 UNJF-38	1.403 [35.64]	1.000 [25.40]	1.156 [29.36]	.400 [10.16]	.906 [23.01]	.850 [21.59]	1.531 [38.89]	1.181 [30.00]	.7150 [18.161]
10	73	SL405	16	1.0000-12 UNJF-38	1.544 [39.22]	1.125 [28.58]	1.281 [32.54]	.440 [11.18]	1.032 [26.21]	.880 [22.35]	1.728 [43.89]	1.400 [35.56]	.7780 [19.761]
11	74	SL405	17	1.0000-12 UNJF-38	1.544 [39.22]	1.125 [28.58]	1.281 [32.54]	.440 [11.18]	1.032 [26.21]	.880 [22.35]	1.728 [43.89]	1.400 [35.56]	.7780 [19.761]
12	75	SL405	18	1.1250-12 UNJF-38	1.857 [47.17]	1.250 [31.75]	1.562 [39.67]	.440 [11.18]	1.156 [29.36]	1.230 [31.24]	2.063 [52.40]	1.697 [43.10]	.9345 [23.736]
13	76	SL405	20	1.2500-12 UNJF-38	2.107 [53.52]	1.375 [34.92]	1.813 [46.05]	.500 [12.70]	1.281 [32.54]	1.320 [33.53]	2.352 [59.74]	1.916 [48.67]	1.0595 [26.911]
14	77	SL405	22	1.3750-12 UNJF-38	2.357 [59.87]	1.500 [38.10]	2.000 [50.80]	.562 [14.72]	1.406 [35.71]	1.460 [37.08]	2.646 [67.21]	2.009 [51.03]	1.1845 [30.086]
15	78	SL405	24	1.5000-12 UNJF-38	2.607 [66.22]	1.625 [41.28]	2.187 [55.55]	.625 [15.88]	1.531 [38.89]	1.520 [38.61]	3.000 [76.20]	2.260 [57.40]	1.3095 [33.261]

Finish

Material

Nut: 4340 Alloy Steel, Barrel: 4340 Alloy Steel, Pins: 300 Series Cres

Documentation

Product page

Contact the supplier

Shur-Lok

Shur-Lok has built a solid reputation as a leader in fastener innovation for high technology industries. The company's focus is strongly on aerospace, an area where Shur-Lok has demonstrated exceptional problem solving expertise.
