Terminal Blocks - Screwless - 3.50 mm

Manufacturer WÜRTH ELEKTRONIK
Description Serie 8101 Screwless Push In 3.50 mm - 45° cable entry - THR
Part Number 691810120302
Insulator Material PA4T
Insulator Colour Black
Contact Material Brass
Contact Plating Tin over Nickel
Tip Spring Material Stainless Steel
Actuator Colour Black
Standard Polarities 02;03;04;05;06;07;08;10;12
Pitch 3.50 (mm)
Operating Temperature -40 °C up to +125 °C
Insulator Flammability Rating UL94 V-0
Rated Current cULus (A) 7
Rated Current VDE (A) 13,5
Working Voltage cULus (VAC) 300
Working Voltage VDE (VAC) 160
Withstanding Voltage Culus (KVAC/min) 1,6
Withstanding Voltage VDE (KVAC/min) 1,4
Contact Resistance cULus (mOHM) 20
Contact Resistance VDE (mOHM) 20
cULus E315414
VDE 40055316
Compliance RoHs / REACh
Wire Strip Length 8 up to 9 (mm)
Solid Wire Gauge 18 to 24 (AWG)
Solid Wire Section 0.2 to 1 (mm²)
Stranded Wire Gauge 16 to 22 (AWG)
Stranded Wire Section 0.2 to 1.5 (mm²)
Packaging Tape and Reel
Orientation 1 45°
Mating Type Screwless
Locking sytem Spring Clamp

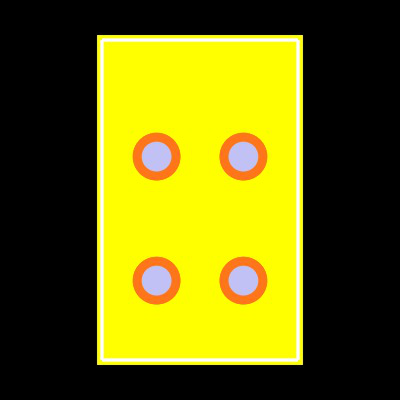

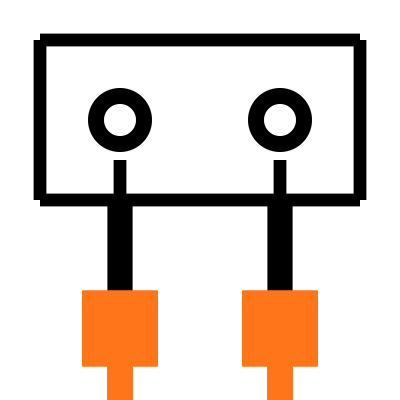

CAD models
Request for quotation
Please make sure this software has been installed.

Product selection

Part NumberDatasheetDescriptionInsulator MaterialInsulator ColourContact MaterialContact PlatingTip Spring MaterialActuator ColourStandard PolaritiesPitchOperating TemperatureInsulator Flammability RatingRated Current cULus (A)Rated Current VDE (A)Working Voltage cULus (VAC)Working Voltage VDE (VAC)Withstanding Voltage Culus (KVAC/min)Withstanding Voltage VDE (KVAC/min)Contact Resistance cULus (mOHM)Contact Resistance VDE (mOHM)cULusVDEComplianceWire Strip LengthSolid Wire GaugeSolid Wire SectionStranded Wire GaugeStranded Wire SectionPackagingOrientation 1
691810120302DatasheetSerie 8101 Screwless Push In 3.50 mm - 45° cable entry - THRPA4TBlackBrassTin over NickelStainless SteelBlack02;03;04;05;06;07;08;10;123.50 (mm)-40 °C up to +125 °CUL94 V-0713,53001601,61,42020E31541440055316RoHs / REACh8 up to 9 (mm)18 to 24 (AWG)0.2 to 1 (mm²)16 to 22 (AWG)0.2 to 1.5 (mm²)Tape and Reel45°
691810120303DatasheetSerie 8101 Screwless Push In 3.50 mm - 45° cable entry - THRPA4TBlackBrassTin over NickelStainless SteelBlack02;03;04;05;06;07;08;10;123.50 (mm)-40 °C up to +125 °CUL94 V-0713,53001601,61,42020E31541440055316RoHs / REACh8 up to 9 (mm)18 to 24 (AWG)0.2 to 1 (mm²)16 to 22 (AWG)0.2 to 1.5 (mm²)Tape and Reel45°
691810120304DatasheetSerie 8101 Screwless Push In 3.50 mm - 45° cable entry - THRPA4TBlackBrassTin over NickelStainless SteelBlack02;03;04;05;06;07;08;10;123.50 (mm)-40 °C up to +125 °CUL94 V-0713,53001601,61,42020E31541440055316RoHs / REACh8 up to 9 (mm)18 to 24 (AWG)0.2 to 1 (mm²)16 to 22 (AWG)0.2 to 1.5 (mm²)Tape and Reel45°
691810120305DatasheetSerie 8101 Screwless Push In 3.50 mm - 45° cable entry - THRPA4TBlackBrassTin over NickelStainless SteelBlack02;03;04;05;06;07;08;10;123.50 (mm)-40 °C up to +125 °CUL94 V-0713,53001601,61,42020E31541440055316RoHs / REACh8 up to 9 (mm)18 to 24 (AWG)0.2 to 1 (mm²)16 to 22 (AWG)0.2 to 1.5 (mm²)Tape and Reel45°
691810120306DatasheetSerie 8101 Screwless Push In 3.50 mm - 45° cable entry - THRPA4TBlackBrassTin over NickelStainless SteelBlack02;03;04;05;06;07;08;10;123.50 (mm)-40 °C up to +125 °CUL94 V-0713,53001601,61,42020E31541440055316RoHs / REACh8 up to 9 (mm)18 to 24 (AWG)0.2 to 1 (mm²)16 to 22 (AWG)0.2 to 1.5 (mm²)Tape and Reel45°
691810120307DatasheetSerie 8101 Screwless Push In 3.50 mm - 45° cable entry - THRPA4TBlackBrassTin over NickelStainless SteelBlack02;03;04;05;06;07;08;10;123.50 (mm)-40 °C up to +125 °CUL94 V-0713,53001601,61,42020E31541440055316RoHs / REACh8 up to 9 (mm)18 to 24 (AWG)0.2 to 1 (mm²)16 to 22 (AWG)0.2 to 1.5 (mm²)Tape and Reel45°
691810120308DatasheetSerie 8101 Screwless Push In 3.50 mm - 45° cable entry - THRPA4TBlackBrassTin over NickelStainless SteelBlack02;03;04;05;06;07;08;10;123.50 (mm)-40 °C up to +125 °CUL94 V-0713,53001601,61,42020E31541440055316RoHs / REACh8 up to 9 (mm)18 to 24 (AWG)0.2 to 1 (mm²)16 to 22 (AWG)0.2 to 1.5 (mm²)Tape and Reel45°
691810120310DatasheetSerie 8101 Screwless Push In 3.50 mm - 45° cable entry - THRPA4TBlackBrassTin over NickelStainless SteelBlack02;03;04;05;06;07;08;10;123.50 (mm)-40 °C up to +125 °CUL94 V-0713,53001601,61,42020E31541440055316RoHs / REACh8 up to 9 (mm)18 to 24 (AWG)0.2 to 1 (mm²)16 to 22 (AWG)0.2 to 1.5 (mm²)Tape and Reel45°
691810120312DatasheetSerie 8101 Screwless Push In 3.50 mm - 45° cable entry - THRPA4TBlackBrassTin over NickelStainless SteelBlack02;03;04;05;06;07;08;10;123.50 (mm)-40 °C up to +125 °CUL94 V-0713,53001601,61,42020E31541440055316RoHs / REACh8 up to 9 (mm)18 to 24 (AWG)0.2 to 1 (mm²)16 to 22 (AWG)0.2 to 1.5 (mm²)Tape and Reel45°
