By WÜRTH ELEKTRONIK

Terminal Blocks - Screwless - 5.00 mm

Manufacturer	WÜRTH ELEKTRONIK
Description	Serie 413 B Screwless 45° Entry_5.00 mm
Part Number	691413720002B
Insulator Material	PA66
Insulator Colour	Grey
Contact Material	Brass
Contact Plating	Tin
Wire Guard	Stainless Steel
Standard Polarities	00;02;03;04;05;06;07;08;09;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24
Pitch	5.00 (mm)
Operating Temperature	-40 °C up to +115 °C
Insulator Flammability Rating	UL94 V-0
Rated Current cULus (A)	15
Working Voltage cULus (VAC)	300

Withstanding Voltage Culus (KVAC/min)	1.6
Contact Resistance cULus (mOHM)	20
cULus	E315414
Compliance	RoHS / Lead free
Wire Strip Length	5 up to 6 (mm)
Solder Profile	JEDEC lead free wave soldering process
Solid Wire Gauge	12 to 28 (AWG)
Solid Wire Section	0.081 to 3.31 (mm²)
Stranded Wire Gauge	12 to 28 (AWG)
Stranded Wire Section	0.081 to 3.31 (mm²)
Packaging	Box
Orientation 1	45°
Mating Type	Fix
Locking sytem	Screwless

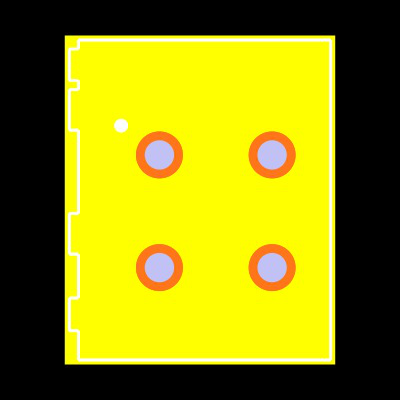

CAD models

Request for quotation

Product selection

	Part Number	Datasheet	Description	Insulator Material	Insulator Colour	Contact Material	Contact Plating	Wire Guard	Standard Polarities	Pitch	Operating Temperature	Insulator Flammability Rating	Rated Current cULus (A)	Working Voltage cULus (VAC)	Withstanding Voltage Culus (KVAC/min)	Contact Resistance cULus (mOHM)	cULus	Compliance	Wire Strip Length	Solder Profile	Solid Wire Gauge	Solid Wire Section	Stranded Wire Gauge	Stranded Wire Section	Packaging	Orientation 1
	691413720002B	Datasheet	Serie 413 B Screwless 45° Entry_5.00 mm	PA66	Grey	Brass	Tin	Stainless Steel	00;02;03;04;05;06;07;08;09;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24	5.00 (mm)	-40 °C up to +115 °C	UL94 V-0	15	300	1.6	20	E315414	RoHS / Lead free	5 up to 6 (mm)	JEDEC lead free wave soldering process	12 to 28 (AWG)	0.081 to 3.31 (mm²)	12 to 28 (AWG)	0.081 to 3.31 (mm²)	Box	45°
	691413720003B	Datasheet	Serie 413 B Screwless 45° Entry_5.00 mm	PA66	Grey	Brass	Tin	Stainless Steel	00;02;03;04;05;06;07;08;09;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24	5.00 (mm)	-40 °C up to +115 °C	UL94 V-0	15	300	1.6	20	E315414	RoHS / Lead free	5 up to 6 (mm)	JEDEC lead free wave soldering process	12 to 28 (AWG)	0.081 to 3.31 (mm²)	12 to 28 (AWG)	0.081 to 3.31 (mm²)	Box	45°
	691413720004B	Datasheet	Serie 413 B Screwless 45° Entry_5.00 mm	PA66	Grey	Brass	Tin	Stainless Steel	00;02;03;04;05;06;07;08;09;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24	5.00 (mm)	-40 °C up to +115 °C	UL94 V-0	15	300	1.6	20	E315414	RoHS / Lead free	5 up to 6 (mm)	JEDEC lead free wave soldering process	12 to 28 (AWG)	0.081 to 3.31 (mm²)	12 to 28 (AWG)	0.081 to 3.31 (mm²)	Box	45°
	691413720005B	Datasheet	Serie 413 B Screwless 45° Entry_5.00 mm	PA66	Grey	Brass	Tin	Stainless Steel	00;02;03;04;05;06;07;08;09;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24	5.00 (mm)	-40 °C up to +115 °C	UL94 V-0	15	300	1.6	20	E315414	RoHS / Lead free	5 up to 6 (mm)	JEDEC lead free wave soldering process	12 to 28 (AWG)	0.081 to 3.31 (mm²)	12 to 28 (AWG)	0.081 to 3.31 (mm²)	Box	45°
	691413720006B	Datasheet	Serie 413 B Screwless 45° Entry_5.00 mm	PA66	Grey	Brass	Tin	Stainless Steel	00;02;03;04;05;06;07;08;09;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24	5.00 (mm)	-40 °C up to +115 °C	UL94 V-0	15	300	1.6	20	E315414	RoHS / Lead free	5 up to 6 (mm)	JEDEC lead free wave soldering process	12 to 28 (AWG)	0.081 to 3.31 (mm²)	12 to 28 (AWG)	0.081 to 3.31 (mm²)	Box	45°
	691413720007B	Datasheet	Serie 413 B Screwless 45° Entry_5.00 mm	PA66	Grey	Brass	Tin	Stainless Steel	00;02;03;04;05;06;07;08;09;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24	5.00 (mm)	-40 °C up to +115 °C	UL94 V-0	15	300	1.6	20	E315414	RoHS / Lead free	5 up to 6 (mm)	JEDEC lead free wave soldering process	12 to 28 (AWG)	0.081 to 3.31 (mm²)	12 to 28 (AWG)	0.081 to 3.31 (mm²)	Box	45°
	691413720008B	Datasheet	Serie 413 B Screwless 45° Entry_5.00 mm	PA66	Grey	Brass	Tin	Stainless Steel	00;02;03;04;05;06;07;08;09;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24	5.00 (mm)	-40 °C up to +115 °C	UL94 V-0	15	300	1.6	20	E315414	RoHS / Lead free	5 up to 6 (mm)	JEDEC lead free wave soldering process	12 to 28 (AWG)	0.081 to 3.31 (mm²)	12 to 28 (AWG)	0.081 to 3.31 (mm²)	Box	45°
	691413720009B	Datasheet	Serie 413 B Screwless 45° Entry_5.00 mm	PA66	Grey	Brass	Tin	Stainless Steel	00;02;03;04;05;06;07;08;09;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24	5.00 (mm)	-40 °C up to +115 °C	UL94 V-0	15	300	1.6	20	E315414	RoHS / Lead free	5 up to 6 (mm)	JEDEC lead free wave soldering process	12 to 28 (AWG)	0.081 to 3.31 (mm²)	12 to 28 (AWG)	0.081 to 3.31 (mm²)	Box	45°
	691413720010B	Datasheet	Serie 413 B Screwless 45° Entry_5.00 mm	PA66	Grey	Brass	Tin	Stainless Steel	00;02;03;04;05;06;07;08;09;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24	5.00 (mm)	-40 °C up to +115 °C	UL94 V-0	15	300	1.6	20	E315414	RoHS / Lead free	5 up to 6 (mm)	JEDEC lead free wave soldering process	12 to 28 (AWG)	0.081 to 3.31 (mm²)	12 to 28 (AWG)	0.081 to 3.31 (mm²)	Box	45°
	691413720011B	Datasheet	Serie 413 B Screwless 45° Entry_5.00 mm	PA66	Grey	Brass	Tin	Stainless Steel	00;02;03;04;05;06;07;08;09;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24	5.00 (mm)	-40 °C up to +115 °C	UL94 V-0	15	300	1.6	20	E315414	RoHS / Lead free	5 up to 6 (mm)	JEDEC lead free wave soldering process	12 to 28 (AWG)	0.081 to 3.31 (mm²)	12 to 28 (AWG)	0.081 to 3.31 (mm²)	Box	45°
