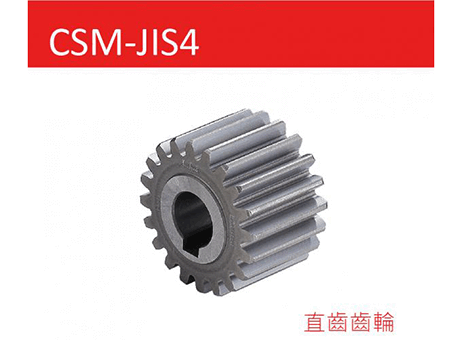

Series CSM-JIS4 Straight Soft Pinions module 2

Manufacturer Yuan Yi Chang (YYC)Machinery Co., Ltd.
Description Straight Soft Pinions CSM020012-JIS4
Part Number CSM020012-JIS4
Material S50C
Mass 0.2
No. of Teeth 12
Quality JIS 4
CAD models
Request for quotation

Product selection

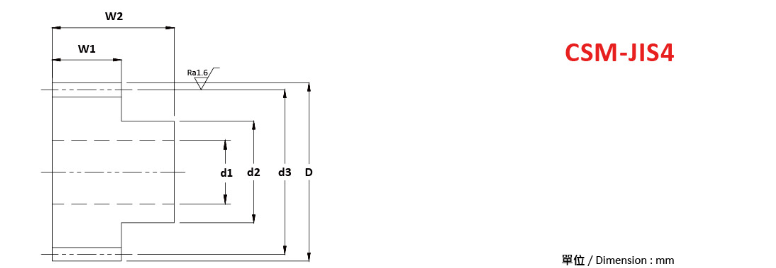

CADPart NumberDescriptionMaterialMassNo. of Teethd1H6d2d3Dw1w2khQualityFta kN
No CAD availableCSM020012-JIS4Straight Soft Pinions CSM020012-JIS4S50C0.212101824282030**JIS 4*
No CAD availableCSM020013-JIS4Straight Soft Pinions CSM020013-JIS4S50C0.313102026302030**JIS 4*
No CAD availableCSM020014-JIS4Straight Soft Pinions CSM020014-JIS4S50C0.314102028322030**JIS 4*
No CAD availableCSM020020-JIS4Straight Soft Pinions CSM020020-JIS4S50C0.315122430342030**JIS 4*
No CAD availableCSM020016-JIS4Straight Soft Pinions CSM020016-JIS4S50C0.416122632362030**JIS 4*
No CAD availableCSM020017-JIS4Straight Soft Pinions CSM020017-JIS4S50C0.417122834382030**JIS 43,58
No CAD availableCSM020018-JIS4Straight Soft Pinions CSM020018-JIS4S50C0.418123036402030**JIS 43,66
No CAD availableCSM020019-JIS4Straight Soft Pinions CSM020019-JIS4S50C0.519123138422030**JIS 43,74
No CAD availableCSM020020-JIS4Straight Soft Pinions CSM020020-JIS4S50C0.520123240442030**JIS 43,81
No CAD availableCSM020021-JIS4Straight Soft Pinions CSM020021-JIS4S50C0.621123442462030**JIS 43,88

Documentation

Technical Document

Contact the supplier

Yuan Yi Chang (YYC)Machinery Co., Ltd.

Yuan Yi Chang (YYC)Machinery Co., Ltd.

YYC is the worldwide brand of Spur Rack, Pinion, Planetary Reducers and backlash free gearboxes. With ISO 9001 certified and patents. Exporting over 40 countries. It’s your best partner for Industry 4.0.
