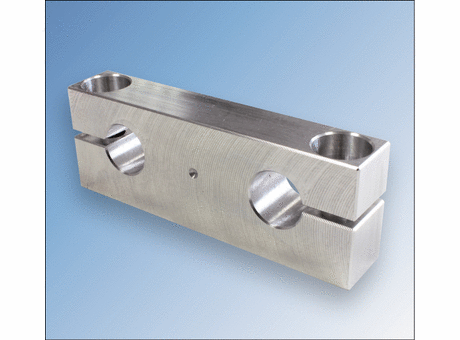

KTC - Shaft support block

Manufacturer	FLI
Description	Shaft support block KTC12
Part number	KTC12
Shaft diameter	12 mm
Mass	100 g

Modelos CAD

Solicitud de presupuesto

Selección de producto

Index	Selector	Part number	Ø d (mm)	A (mm)	H1 (mm)	L (mm)	L1 (mm)	Weight (g)
1	4	KTC12	12	15	30	80	40	100
2	6	KTC16	16	15	35	95	52	150
3	7	KTC20	20	18	40	115	63	200
4	8	KTC25	25	20	50	136	75	250
5	9	KTC30	30	20	56	146	80	350
6	10	KTC40	40	25	70	184	97	650
7	11	KTC50	50	30	80	210	107	850
