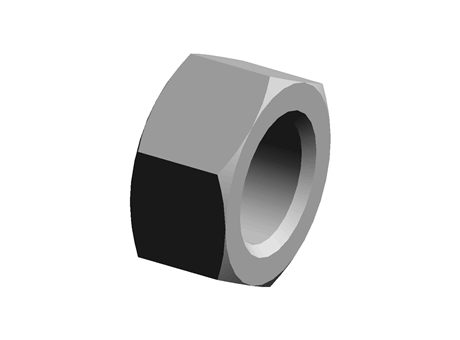

Hexagon nuts for structural bolting, style 1, hot-dip galvanized(oversize tapped), grade A and B, class 5, 6 and 8

Standard	GB/T 18230.6 - 2000
Description	Hexagon nut for structural bolting, style 1, hot-dip galvanized(oversize tapped), grade A and B, class 5, 6 and 8 GB/T 18230.6 M10
Part number	GB/T 18230.6 M10
Omniclass number	23.13.23.11.13.23

Modelos CAD

Selección de producto

Ref	D	(mm)	(mm)	P (mm)
GB/T 18230.6 M10	M10	8.4	16	1.5
GB/T 18230.6 M12	M12	10.8	18	1.75
GB/T 18230.6 M14	M14	12.8	21	2
GB/T 18230.6 M16	M16	14.8	24	2
GB/T 18230.6 M20	M20	18	30	2.5
GB/T 18230.6 M24	M24	21.5	36	3
GB/T 18230.6 M30	M30	25.6	46	3.5
GB/T 18230.6 M36	M36	31	55	4
