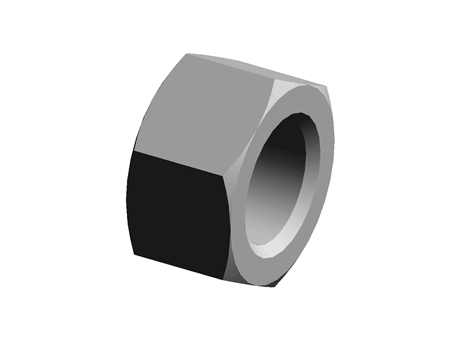

Hexagon nuts for structural bolting, style 2, hot-dip galvanized(oversize tapped), grade A, class 9

Standard	GB/T 18230.7 - 2000
Description	Hexagon nut for structural bolting, style 2, hot-dip galvanized(oversize tapped), grade A, class 9 GB/T 18230.7 M10
Part number	GB/T 18230.7 M10
Omniclass number	23.13.23.11.13.23

Modelos CAD

Selección de producto

Ref	D	(mm)	(mm)	P (mm)
GB/T 18230.7 M10	M10	9.3	16	1.5
GB/T 18230.7 M12	M12	12	18	1.75
GB/T 18230.7 M14	M14	14.1	21	2
GB/T 18230.7 M16	M16	16.4	24	2
