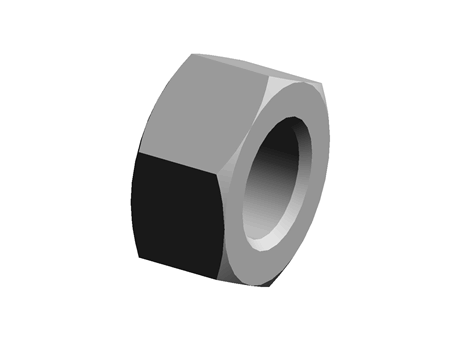

Hexagon nuts for structural bolting with large width across flats, style 1, grade B, class 10

Standard	GB/T 18230.4 - 2000
Description	Hexagon nut for structural bolting with large width across flats, style 1, grade B, class 10 GB/T 18230.4 M12
Part number	GB/T 18230.4 M12
Omniclass number	23.13.23.11.13.23

Modelos CAD

Selección de producto

Ref	D	(mm)	(mm)	P (mm)
GB/T 18230.4 M12	M12	10.8	21	1.75
GB/T 18230.4 M16	M16	14.8	27	2
GB/T 18230.4 M20	M20	18	34	2.5
GB/T 18230.4 M22	M22	19.4	36	2.5
GB/T 18230.4 M24	M24	21.5	41	3
GB/T 18230.4 M27	M27	23.8	46	3
GB/T 18230.4 M30	M30	25.6	50	3.5
GB/T 18230.4 M36	M36	31	60	4
