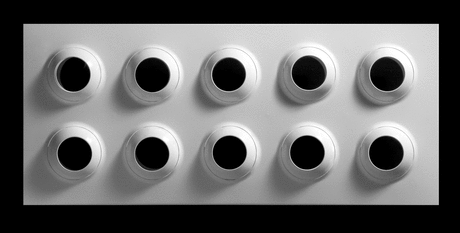

KOO (Multi-Toberas de largo alcance)

Fabricante	Madel
Descripción de la referencia	KOO+PLRX 900x200
Referencia	KOO+PLRX 900x200
Enlace del producto del fabricante	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/
Código del producto	KOO+PLRX/AIS/-R
Caudal de aire mínimo [m³/h]	234
Caudal de aire máximo [m³/h]	917,28
Código Masterformat	23 36 00

MasterFormat	Air Terminal Units
Código OMNICLASS Tabla 23	23-33 41 00
Nombre OmniClass	HVAC Air Terminals
Código Uniclass Product	Pr_70_65_04
Nombre Uniclass Product	Air terminals and diffusers
Nombre BIM&CO
Anchura total [mm]	900
Altura total [mm]	200

Modelos CAD

Solicitud de presupuesto

Selección de producto

Index	Selector	Referencia	Enlace del producto del fabricante	Código del producto	Caudal de aire mínimo [m³/h]	Caudal de aire máximo [m³/h]	Código Masterformat	MasterFormat	Código OMNICLASS Tabla 23	Nombre OmniClass	Código Uniclass Product	Nombre Uniclass Product	Nombre BIM&CO	Anchura total [mm]	Altura total [mm]
1	1	KOO 900x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	234	917,28	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	900	200
2	12	KOO+PLRX/L 800x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	99	423,72	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		800	100
3	23	KOO+PLRX/L 1000x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	261	1023,12	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		1000	200
4	34	KOO+PLRX/L 800x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	198	776,16	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		800	200
5	45	KOO+PLRX 600x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	198	871,2	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		600	300
6	56	KOO+PLRX/L 300x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	99	435,6	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		300	300
7	67	KOO+PLRX/L 700x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	180	705,6	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		700	200
8	78	KOO+PLRX 400x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	54	231,12	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		400	100
9	89	KOO+PLRX/L 1200x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	405	1782	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		1200	300
10	2	KOO+PLRX/L 900x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	306	1346,4	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		900	300
11	3	KOO+PLRX/L 700x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	90	385,2	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		700	100
12	4	KOO+PLRX/L 900x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	144	610,56	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		900	150
13	5	KOO+PLRX 750x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	126	534,24	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		750	150
14	6	KOO+PLRX 600x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	81	346,68	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		600	100
15	7	KOO+PLRX 1000x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	126	539,28	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		1000	100
16	8	KOO+PLRX 700x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	90	385,2	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		700	100
17	9	KOO+PLRX 1050x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	180	763,2	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		1050	150
18	10	KOO+PLRX 900x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	234	917,28	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		900	200
19	11	KOO+PLRX/L 200x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	27	115,56	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		200	100
20	13	KOO+PLRX 1200x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	405	1782	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		1200	300
21	14	KOO+PLRX/L 1050x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	351	1544,4	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		1050	300
22	15	KOO+PLRX/L 750x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	252	1108,8	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		750	300
23	16	KOO+PLRX 600x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	99	419,76	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		600	150
24	17	KOO+PLRX/L 600x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	153	599,76	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		600	200
25	18	KOO+PLRX/L 400x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	54	231,12	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		400	100
26	19	KOO+PLRX 1050x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	351	1544,4	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		1050	300
27	20	KOO+PLRX 1200x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	198	839,52	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		1200	150
28	21	KOO+PLRX 750x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	252	1108,8	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		750	300
29	22	KOO+PLRX 900x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	117	500,76	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		900	100
30	24	KOO+PLRX 900x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	144	610,56	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		900	150
31	25	KOO+PLRX/L 900x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	117	500,76	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		900	100
32	26	KOO+PLRX/L 1000x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	126	539,28	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		1000	100
33	27	KOO+PLRX 450x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	153	673,2	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		450	300
34	28	KOO+PLRX/L 600x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	99	419,76	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		600	150
35	29	KOO+PLRX/L 900x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	117	458,64	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		900	200
36	30	KOO+PLRX/L 750x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	126	534,24	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		750	150
37	31	KOO+PLRX 200x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	54	211,68	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		200	200
38	32	KOO+PLRX/L 1050x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	351	1544,4	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		1050	300
39	33	KOO+PLRX 800x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	99	423,72	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		800	100
40	35	KOO+PLRX/L 1200x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	198	839,52	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		1200	150
41	36	KOO+PLRX 1000x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	261	1023,12	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		1000	200
42	37	KOO 600x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	81	346,68	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	600	100
43	38	KOO+PLRX/L 500x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	63	269,64	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		500	100
44	39	KOO+PLRX 300x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	36	154,08	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		300	100
45	40	KOO 700x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	90	385,2	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	700	100
46	41	KOO 450x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	72	305,28	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	450	150
47	42	KOO 300x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	99	435,6	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	300	300
48	43	KOO 300x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	54	228,96	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	300	150
49	44	KOO 500x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	126	493,92	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	500	200
50	46	KOO+PLRX/L 300x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	81	317,52	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		300	200
51	47	KOO+PLRX/L 450x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	72	305,28	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		450	150
52	48	KOO+PLRX 300x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	54	228,96	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		300	150
53	49	KOO 450x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	153	673,2	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	450	300
54	50	KOO 500x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	63	269,64	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	500	100
55	51	KOO+PLRX 500x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	63	269,64	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		500	100
56	52	KOO 600x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	198	871,2	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	600	300
57	53	KOO 200x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	54	211,68	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	200	200
58	54	KOO 600x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	153	599,76	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	600	200
59	55	KOO 900x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	117	500,76	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	900	100
60	57	KOO+PLRX 800x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	198	776,16	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		800	200
61	58	KOO 750x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	252	1108,8	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	750	300
62	59	KOO+PLRX/L 600x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	81	346,68	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		600	100
63	60	KOO 900x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	144	610,56	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	900	150
64	61	KOO 700x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	180	705,6	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	700	200
65	62	KOO+PLRX/L 300x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	54	228,96	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		300	150
66	63	KOO 750x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	126	534,24	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	750	150
67	64	KOO+PLRX 300x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	99	435,6	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		300	300
68	65	KOO+PLRX 300x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	81	317,52	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		300	200
69	66	KOO 800x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	198	776,16	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	800	200
70	68	KOO 600x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	99	419,76	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	600	150
71	69	KOO 900x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	306	1346,4	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	900	300
72	70	KOO 1000x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	261	1023,12	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	1000	200
73	71	KOO+PLRX 600x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	153	599,76	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		600	200
74	72	KOO+PLRX/L 400x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	99	388,08	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		400	200
75	73	KOO+PLRX/L 600x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	198	871,2	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		600	300
76	74	KOO+PLRX 500x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	126	493,92	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		500	200
77	75	KOO 800x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	99	423,72	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	800	100
78	76	KOO+PLRX/L 450x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	153	673,2	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		450	300
79	77	KOO 400x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	54	231,12	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	400	100
80	79	KOO+PLRX/L 500x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	126	493,92	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		500	200
81	80	KOO 300x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	81	317,52	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	300	200
82	81	KOO 1050x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	351	1544,4	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	1050	300
83	82	KOO+PLRX/L 300x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	36	154,08	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		300	100
84	83	KOO 1000x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	126	539,28	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	1000	100
85	84	KOO 400x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	99	388,08	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	400	200
86	85	KOO 1200x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	405	1782	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	1200	300
87	86	KOO+PLRX 700x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	180	705,6	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		700	200
88	87	KOO+PLRX 450x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	72	305,28	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		450	150
89	88	KOO+PLRX 200x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	27	115,56	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		200	100
90	90	KOO+PLRX 900x300	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	306	1346,4	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		900	300
91	91	KOO 1200x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	198	839,52	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	1200	150
92	92	KOO+PLRX/L 200x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/L/AIS/-R	54	211,68	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		200	200
93	93	KOO+PLRX 400x200	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+PLRX/AIS/-R	99	388,08	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers		400	200
94	94	KOO 300x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	36	154,08	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	300	100
95	95	KOO 200x100	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	27	115,56	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	200	100
96	96	KOO 1050x150	http://www.madel.com/en/producto/koo-long-throw-multi-jet-nozzles/	KOO+CM	180	763,2	23 36 00	Air Terminal Units	23-33 41 00	HVAC Air Terminals	Pr_70_65_04	Air terminals and diffusers	Difusores HVAC	1050	150

Descripción del producto

Las multi-toberas KOO están diseñadas para su aplicación en instalaciones de aire acondicionado, ventilación o calefacción, con un diferencial de temperatura de hasta 12 º C. El montaje se puede realizar tanto en pared como en techo. Las multi-toberas KOO responden a diferentes requerimientos funcionales y arquitectónicos gracias a sus toberas de difusión orientables manualmente en todas direcciones. En función del tamaño de la placa, las toberas que integran son de 80 o 125 mm. Gracias a su largo alcance y control direccional de la vena de aire, las multitoberas KOO están indicadas para la difusión de aire en cualquier tipo de arquitectura. Su elevado índice de inducción minimiza la estratificación del aire. Las multi-toberas KOO aportan una nueva estética de vanguardia. Integrando las toberas de difusión dentro de la placa rectangular, resulta una superficie ondulada y homogénea, de gran capacidad de integración arquitectónica gracias a un diseño muy armónico.

Documentación

KOO (Long throw multi-jet nozzles)

KOO (Muti-buses longue portée)

KOO (Multi-Toberas de largo alcance)
