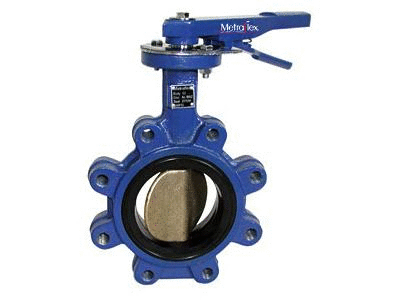

Butterfly Valve Lug Style w/10 Pos Handle EPDM Seat - BL03EDINC025

Manufacturer Metraflex Co.
Description Butterfly Valve Lug Style w/10 Pos Handle EPDM Seat - BL03EDINC025
Part Number BL03EDINC025
Material Cast Iron, EPDM Seat, DINC Disk
Ship Weight [lb] 12
Size [in] 2 1/2
L [in] 5 1/4
D [in] 1 3/4
A [in] 11-1/2
B [in] 8
C [in] 3 1/2
F [in] 6
E [in] 10 3/8
G [in] 5 1/2
K [in] 2 1/2
J [in] 4
Body Material Cast Iron
Disc Material DINC
Pressure at 250 deg F [psi] 200
Overall Height [in] 11.5
Tap Size 5/8-11 UNC
Liner Material EPDM
Upper Stem AISI 421
Lower Stem AISI 421
Upper Stem Bearing Oil Impregnated Bronze
Upper Stem O-Ring EPDM
Lower Stem O-Ring EPDM
Lower Stem Set Screw ASTM A-583
Position Plate 10 Pos./In/Pos. Carbon Steel
