BE40A - 50 GHz, Bulls Eye®: Double Row, High-Performance Test System

Manufacturer	Samtec
Description	50 GHz, Bulls Eye®: Double Row, High-Performance Test System, BE40A-S-92SP-2-2-03-0152
Part number	BE40A-S-92SP-2-2-03-0152
Series	BE40A
Transmission type	-S: Stripline
End 2 connector	-92SP: 2.92 mm straight plug
Phase matching spec (range)	-2: 2 Pico-seconds

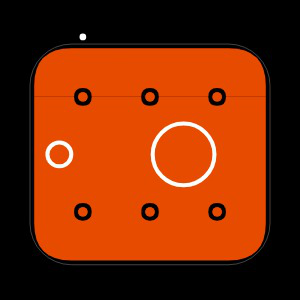

Modelos CAD

Comprar ahora

Selección de producto

Series

BE40A

Transmission type

End 2 connector

Phase matching spec (range)

No of rows

No of position (per row)

Overall assembly length (oal) (mm)

Enhanced system design with signal and ground pogo pin
Microstrip or stripline PCB transmission
50 ohm impedance
23 AWG solid dielectric low loss microwave cable with additional copper shielding
Replacement cables (BE40C Series) and block (BE40B Series) available
Backward compatible with our 20 GHz Bulls Eye® footprint (BDRA Series only)
