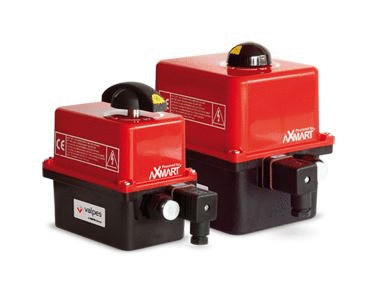

ER PLUS - long operating time range - 90° electric actuator, PA6 housing UL 94 V-0 with secured manual override for torques of 10-20-35-60-100Nm and in accordance with CE-ROHS-REACH Directives

Manufacturer	Valpes
Description	ER PLUS - long operating time range - 90° electric actuator, PA6 housing UL 94 V-0 with secured manual override for torques of 10-20-35-60-100Nm, Torque 35Nm, Voltage supplies 100V to 240V 50/60Hz (100V to 350V DC)
Part Number	ER35.93A.G00
Star drive nut Connection	22/F05-F07
Torque	35Nm

Voltage supplies	100V to 240V 50/60Hz (100V to 350V DC)
Power	45W
Operating time (90°) without load	34s
Operating time (90°) with load	40s

Modelos CAD

Solicitud de presupuesto

Selección de producto

Index	Selector	Part Number	Description	Star drive nut Connection	Torque	Voltage supplies	Power	Operating time (90°) without load	Operating time (90°) with load
1	1	ER35.93A.G00	ER PLUS - long operating time range - 90° electric actuator, PA6 housing UL 94 V-0 with secured manual override for torques of 10-20-35-60-100Nm, Torque 35Nm, Voltage supplies 100V to 240V 50/60Hz (100V to 350V DC)	22/F05-F07	35Nm	100V to 240V 50/60Hz (100V to 350V DC)	45W	34s	40s
2	2	ER35.93B.G00	ER PLUS - long operating time range - 90° electric actuator, PA6 housing UL 94 V-0 with secured manual override for torques of 10-20-35-60-100Nm, Torque 35Nm, Voltage supplies 15V to 30V 50/60Hz (12V to 48V DC)	22/F05-F07	35Nm	15V to 30V 50/60Hz (12V to 48V DC)	45W	34s	41s
3	3	ER60.93A.G00	ER PLUS - long operating time range - 90° electric actuator, PA6 housing UL 94 V-0 with secured manual override for torques of 10-20-35-60-100Nm, Torque 60Nm, Voltage supplies 100V to 240V 50/60Hz (100V to 350V DC)	22/F05-F07	60Nm	100V to 240V 50/60Hz (100V to 350V DC)	45W	67s	79s
4	4	ER60.93B.G00	ER PLUS - long operating time range - 90° electric actuator, PA6 housing UL 94 V-0 with secured manual override for torques of 10-20-35-60-100Nm, Torque 60Nm, Voltage supplies 15V to 30V 50/60Hz (12V to 48V DC)	22/F05-F07	60Nm	15V to 30V 50/60Hz (12V to 48V DC)	45W	68s	79s
5	5	ER100.93A.G00	ER PLUS - long operating time range - 90° electric actuator, PA6 housing UL 94 V-0 with secured manual override for torques of 10-20-35-60-100Nm, Torque 100Nm, Voltage supplies 100V to 240V 50/60Hz (100V to 350V DC)	22/F05-F07	100Nm	100V to 240V 50/60Hz (100V to 350V DC)	45W	110s	119s
6	6	ER100.93B.G00	ER PLUS - long operating time range - 90° electric actuator, PA6 housing UL 94 V-0 with secured manual override for torques of 10-20-35-60-100Nm, Torque 100Nm, Voltage supplies 15V to 30V 50/60Hz (12V to 48V DC)	22/F05-F07	100Nm	15V to 30V 50/60Hz (12V to 48V DC)	45W	110s	119s

Documentación

Technical datasheet

Contacte con el proveedor

Valpes

VALPES was founded in 1986 and is now part of the WATTS WATER TECHNOLOGIES group.The 1500m2 production plant based in Moirans near Grenoble meets the latest standards required by the profession (ISO 9001, ATEX, IECEx, CSA / UL, EAC, EACEx). It is in this area that all VALPES electric actuators are manufactured, assembled and tested.
