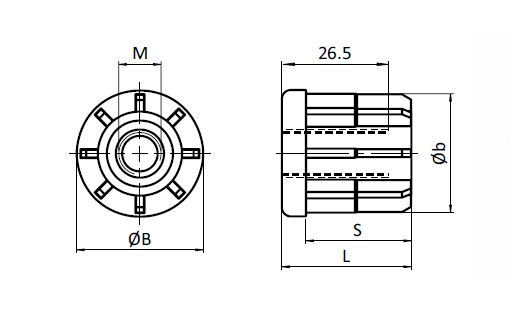

Threaded Bush for Round Tubes, Nylon PA, with Brass Threaded Insert

Manufacturer	FATH
Description	Threaded Bush for Round Tubes, Nylon PA, with Brass Threaded Insert
Part number	098VR301008
Material	Bush: Nylon PA, glass fibre reinforced; Threaded insert: Nickel plated brass
Note	Colour: Black

CAD-mallien

Pyydä tarjousta

Tuotevalikoima

Index	Selector	Threaded Bushes	Round Tube [mm]	M	B [mm]	b [mm]	L [mm]	S [mm]	Max. Load (kg)	Weight [g]	Article
1	1	30	30 x 1.0	M8	30.0	28.5	33	27	500	64.0	098VR301008
2	2	30	30 x 1.0	M10	30.0	28.5	33	27	500	59.0	098VR301010
3	3	30	30 x 1.0	M12	30.0	28.5	33	27	500	52.0	098VR301012
4	4	30	30 x 1.0	M14	30.0	28.5	33	27	500	43.0	098VR301014
5	5	30	30 x 1.0	M16	30.0	28.5	33	27	500	47.0	098VR301016
6	6	30	30 x 1.5	M8	30.0	27.5	33	27	500	58.0	098VR301508
7	7	30	30 x 1.5	M10	30.0	27.5	33	27	500	52.0	098VR301510
8	8	30	30 x 1.5	M12	30.0	27.5	33	27	500	50.0	098VR301512
9	9	30	30 x 1.5	M14	30.0	27.5	33	27	500	39.0	098VR301514
10	10	30	30 x 1.5	M16	30.0	27.5	33	27	500	34.0	098VR301516
11	11	30	30 x 2.0	M8	30.0	26.5	33	27	500	100.0	098VR302008
12	12	30	30 x 2.0	M10	30.0	26.5	33	27	500	95.0	098VR302010
13	13	30	30 x 2.0	M12	30.0	26.5	33	27	500	88.0	098VR302012
14	14	30	30 x 2.0	M14	30.0	26.5	33	27	500	79.0	098VR302014
15	15	30	30 x 2.0	M16	30.0	26.5	33	27	500	83.0	098VR302016
16	16	30	30 x 2.5	M8	30.0	25.5	33	27	500	57.0	098VR302508
17	17	30	30 x 2.5	M10	30.0	25.5	33	27	500	52.0	098VR302510
18	18	30	30 x 2.5	M12	30.0	25.5	33	27	500	50.0	098VR302512
19	19	30	30 x 2.5	M14	30.0	25.5	33	27	500	42.0	098VR302514
20	20	30	30 x 2.5	M16	30.0	25.5	33	27	500	47.0	098VR302516
21	21	38	38 x 1.5	M10	38.0	35.5	43	35	600	76.0	098VR381510
22	22	38	38 x 1.5	M12	38.0	35.5	43	35	600	69.0	098VR381512
23	23	38	38 x 1.5	M14	38.0	35.5	43	35	600	60.0	098VR381514
24	24	38	38 x 1.5	M16	38.0	35.5	43	35	600	64.0	098VR381516
25	25	38	38 x 2.0	M10	38.0	34.5	43	35	600	76.0	098VR382010
26	26	38	38 x 2.0	M12	38.0	34.5	43	35	600	69.0	098VR382012
27	27	38	38 x 2.0	M14	38.0	34.5	43	35	600	60.0	098VR382014
28	28	38	38 x 2.0	M16	38.0	34.5	43	35	600	64.0	098VR382016
29	29	38	38 x 2.5	M10	38.0	33.5	43	35	600	76.0	098VR382510
30	30	38	38 x 2.5	M12	38.0	33.5	43	35	600	69.0	098VR382512
31	31	38	38 x 2.5	M14	38.0	33.5	43	35	600	60.0	098VR382514
32	32	38	38 x 2.5	M16	38.0	33.5	43	35	600	64.0	098VR382516
33	33	42.4	42.4 x 1.5	M10	42.4	39.9	43	35	800	81.0	098VR421510
34	34	42.4	42.4 x 1.5	M12	42.4	39.9	43	35	800	74.0	098VR421512
35	35	42.4	42.4 x 1.5	M14	42.4	39.9	43	35	800	65.0	098VR421514
36	36	42.4	42.4 x 1.5	M16	42.4	39.9	43	35	800	69.0	098VR421516
37	37	42.4	42.4 x 1.5	M20	42.4	39.9	43	35	800	65.0	098VR421520
38	38	42.4	42.4 x 2.0	M10	42.4	38.9	43	35	800	81.0	098VR422010
39	39	42.4	42.4 x 2.0	M12	42.4	38.9	43	35	800	74.0	098VR422012
40	40	42.4	42.4 x 2.0	M14	42.4	38.9	43	35	800	65.0	098VR422014
41	41	42.4	42.4 x 2.0	M16	42.4	38.9	43	35	800	69.0	098VR422016
42	42	42.4	42.4 x 2.0	M20	42.4	38.9	43	35	800	64.0	098VR422020
43	43	42.4	42.4 x 2.5	M10	42.4	37.9	43	35	800	81.0	098VR422510
44	44	42.4	42.4 x 2.5	M12	42.4	37.9	43	35	800	74.0	098VR422512
45	45	42.4	42.4 x 2.5	M14	42.4	37.9	43	35	800	65.0	098VR422514
46	46	42.4	42.4 x 2.5	M16	42.4	37.9	43	35	800	69.0	098VR422516
47	47	42.4	42.4 x 2.5	M20	42.4	37.9	43	35	800	64.0	098VR422520
48	48	48.3	48.3 x 1.5	M12	48.3	45.8	55	44	1000	88.0	098VR481512
49	49	48.3	48.3 x 1.5	M14	48.3	45.8	55	44	1000	79.0	098VR481514
50	50	48.3	48.3 x 1.5	M16	48.3	45.8	55	44	1000	83.0	098VR481516
51	51	48.3	48.3 x 1.5	M20	48.3	45.8	55	44	1000	80.0	098VR481520
52	52	48.3	48.3 x 2.0	M12	48.3	44.8	55	44	1000	88.0	098VR482012
53	53	48.3	48.3 x 2.0	M14	48.3	44.8	55	44	1000	79.0	098VR482014
54	54	48.3	48.3 x 2.0	M16	48.3	44.8	55	44	1000	83.0	098VR482016
55	55	48.3	48.3 x 2.0	M20	48.3	44.8	55	44	1000	78.0	098VR482020
56	56	48.3	48.3 x 2.5	M12	48.3	43.8	55	44	1000	88.0	098VR482512
57	57	48.3	48.3 x 2.5	M14	48.3	43.8	55	44	1000	79.0	098VR482514
58	58	48.3	48.3 x 2.5	M16	48.3	43.8	55	44	1000	70.0	098VR482516
59	59	48.3	48.3 x 2.5	M20	48.3	43.8	55	44	1000	77.0	098VR482520
60	60	50.9	50.9 x 1.5	M12	50.9	48.4	55	44	1000	102.0	098VR511512
61	61	50.9	50.9 x 1.5	M14	50.9	48.4	55	44	1000	83.0	098VR511514
62	62	50.9	50.9 x 1.5	M16	50.9	48.4	55	44	1000	87.0	098VR511516
63	63	50.9	50.9 x 1.5	M20	50.9	48.4	55	44	1000	89.5	098VR511520
64	64	50.9	50.9 x 2.0	M12	50.9	47.4	55	44	1000	92.0	098VR512012
65	65	50.9	50.9 x 2.0	M14	50.9	47.4	55	44	1000	83.0	098VR512014
66	66	50.9	50.9 x 2.0	M16	50.9	47.4	55	44	1000	87.0	098VR512016
67	67	50.9	50.9 x 2.0	M20	50.9	47.4	55	44	1000	83.0	098VR512020
68	68	50.9	50.9 x 2.5	M12	50.9	46.4	55	44	1000	92.0	098VR512512
69	69	50.9	50.9 x 2.5	M14	50.9	46.4	55	44	1000	83.0	098VR512514
70	70	50.9	50.9 x 2.5	M16	50.9	46.4	55	44	1000	87.0	098VR512516
71	71	50.9	50.9 x 2.5	M20	50.9	46.4	55	44	1000	83.0	098VR512520
72	72	60.3	60.3 x 2.0	M12	60.3	56.8	55	44	1000	113.0	098VR602012
73	73	60.3	60.3 x 2.0	M14	60.3	56.8	55	44	1000	106.0	098VR602014
74	74	60.3	60.3 x 2.0	M16	60.3	56.8	55	44	1000	108.0	098VR602016
75	75	60.3	60.3 x 2.0	M20	60.3	56.8	55	44	1000	110.0	098VR602020
76	76	60.3	60.3 x 2.5	M12	60.3	55.8	55	44	1000	113.0	098VR602512
77	77	60.3	60.3 x 2.5	M14	60.3	55.8	55	44	1000	106.0	098VR602514
78	78	60.3	60.3 x 2.5	M16	60.3	55.8	55	44	1000	98.0	098VR602516
79	79	60.3	60.3 x 2.5	M20	60.3	55.8	55	44	1000	109.0	098VR602520
80	80	60.3	60.3 x 3.0	M12	60.3	54.8	55	44	1000	112.0	098VR603012
81	81	60.3	60.3 x 3.0	M14	60.3	54.8	55	44	1000	105.0	098VR603014
82	82	60.3	60.3 x 3.0	M16	60.3	54.8	55	44	1000	98.0	098VR603016
83	83	60.3	60.3 x 3.0	M20	60.3	54.8	55	44	1000	108.0	098VR603020
84	84	60.3	60.3 x 4.0	M12	60.3	52.8	55	44	1000	110.0	098VR604012
85	85	60.3	60.3 x 4.0	M14	60.3	52.8	55	44	1000	105.0	098VR604014
86	86	60.3	60.3 x 4.0	M16	60.3	52.8	55	44	1000	102.0	098VR604016
87	87	60.3	60.3 x 4.0	M20	60.3	52.8	55	44	1000	105.0	098VR604020
