Ralle DU - serie metrica

Rondelle reggispinta, buona resistenza all'usura con un'ampia gamma di carichi e temperature per il funzionamento a secco

Costruttore	GGB
Descrizione	Ralle DU - serie metrica
Riferimento	WC25DU

Modelli CAD

Richiedi un preventivo

Prodotto da selezionare

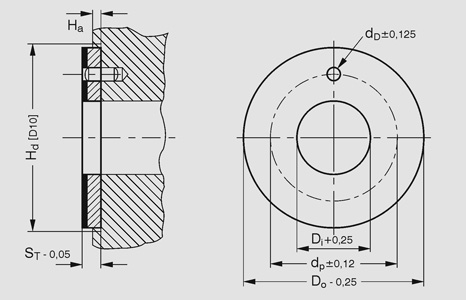

Index	Selector	N. di parte	Di (mm)	Do (mm)	ST (mm)	dD (mm)	dP (mm)	Ha max. (mm)	Ha min. (mm)
1	1	WC08DU	10	20	1.5			1.2	0.95
2	2	WC10DU	12	24	1.5	1.75	18	1.2	0.95
3	3	WC12DU	14	26	1.5	2.25	20	1.2	0.95
4	4	WC14DU	16	30	1.5	2.25	22	1.2	0.95
5	5	WC16DU	18	32	1.5	2.25	25	1.2	0.95
6	6	WC18DU	20	36	1.5	3.25	28	1.2	0.95
7	7	WC20DU	22	38	1.5	3.25	30	1.2	0.95
8	8	WC22DU	24	42	1.5	3.25	33	1.2	0.95
9	9	WC24DU	26	44	1.5	3.25	35	1.2	0.95
10	10	WC25DU	28	48	1.5	4.25	38	1.2	0.95
11	11	WC30DU	32	54	1.5	4.25	43	1.2	0.95
12	12	WC35DU	38	62	1.5	4.25	50	1.2	0.95
13	13	WC40DU	42	66	1.5	4.25	54	1.2	0.95
14	14	WC45DU	48	74	2	4.25	61	1.7	1.45
15	15	WC50DU	52	78	2	4.25	65	1.7	1.45
16	16	WC60DU	62	90	2	4.25	76	1.7	1.45

Index	Selector	Material	Certificate RoHS	Certificate WEEE	Tested according to ASTM E595/ECSS-Q-ST-70-02C	approved according to standard	DIN ISO 3547	low-maintenance or maintenance-free	dry running	lubricated	greased	customs tariff no	material properties	for improved performance
1	1	DU	-	-	sì	FAR 25.853 e FAR 25.855	sì	sì	sì	sì	sì	84833080	Buona resistenza all'usura in un'ampia gamma di carichi e temperature, quando si lavora a secco	Secco DP4 / DP11 Lubrificato a olio DP4/D31 Lubrificato a grasso DP4 / DX Lubrificato ad acqua DP4-B Mezzi lubrificati DP4 / DP31
