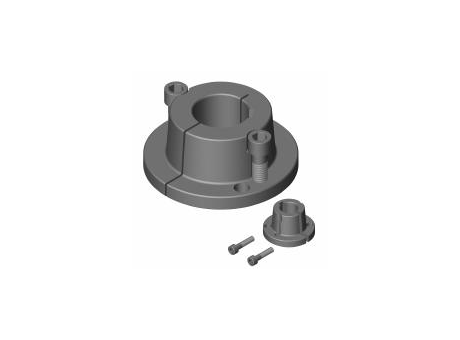

2825

Manufacturer	POGGI
Description	2825 A 00
Part Number	140282000

Modele CAD

Prośba o wycenę

Wybór produktu

Index	Selector	Part Number	Description	Material	d	D	Bore mm	S	U	V	W	b	t
1	1	140282000	2825 A 00	Cast iron	39	58	-	37	8	12	25	-	-
2	2	140282011	2825 A 11	Cast iron	39	58	11	37	8	12	25	4	12,8
3	3	140282012	2825 A 12	Cast iron	39	58	12	37	8	12	25	4	13,8
4	4	140282014	2825 A 14	Cast iron	39	58	14	37	8	12	25	5	16,3
5	5	140282015	2825 A 15	Cast iron	39	58	15	37	8	12	25	5	17,3
6	6	140282016	2825 A 16	Cast iron	39	58	16	37	8	12	25	5	18,3
7	7	140282017	2825 A 17	Cast iron	39	58	17	37	8	12	25	5	19,3
8	8	140282018	2825 A 18	Cast iron	39	58	18	37	8	12	25	6	20,8
9	9	140282019	2825 A 19	Cast iron	39	58	19	37	8	12	25	6	21,8
10	10	140282020	2825 A 20	Cast iron	39	58	20	37	8	12	25	6	22,8
11	11	140282022	2825 A 22	Cast iron	39	58	22	37	8	12	25	6	24,8
12	12	140282024	2825 A 24	Cast iron	39	58	24	37	8	12	25	8	27,3
13	13	140282025	2825 A 25	Cast iron	39	58	25	37	8	12	25	8	28,3
14	14	140282026	2825 A 26	Cast iron	39	58	26	37	8	12	25	8	29,3
15	15	140282028	2825 A 28	Cast iron	39	58	28	37	8	12	25	8	31,3
16	16	140282030	2825 A 30	Cast iron	39	58	30	37	8	12	25	8	32,3

Dokumentacja

Catalog Data Sheet
