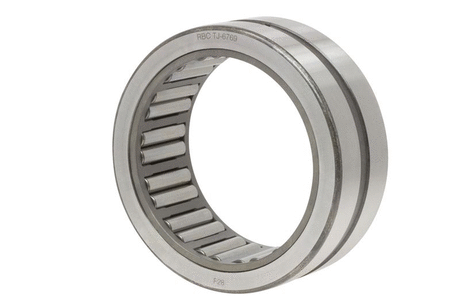

RBC Heavy Duty Pitchlign TandemRoller Bearing

Manufacturer	Roller Bearing Company Inc.
Description	TJ7470111D - RBC Heavy Duty Pitchlign TandemRoller Bearing - 1.2910" Bore x 1.9375" OD x 1.1250" Width
Part Number	TJ7470111D
Material	52100 Bearing Quality Steel
Inch/Metric	Inch
Type	Unsealed
Style	Caged Needle Bearing with 2 rollers per cage pocket
Weight (lb)	0.3
Total Width (inch)	1.125
Total Width (mm)	28.58
Outside Diameter (inch)	1.9375
Outside Diameter (mm)	49.21
Finish	Chrome Steel
Series	TandemRoller®
Bore Size (inch)	1.2910
Bore Size (mm)	32.79
Dynamic Load Rating (lbf)	21500

Dynamic Load Rating (N)	95637
Static Load Rating (lbf)	12400
Static Load Rating (N)	55158
Enclosure	Open
Operating Temperature (Min) ºC	-40
Operating Temperature (Min) 35 ºF	-40
Operating Temperature (Max) ºC	148.9
Operating Temperature (Max) 36 ºF	300
Fillet Radius/Chamfer (inch)	0.035
Fillet Radius/Chamfer (mm)	0.89
Speed (Max) rpm
Cage Material	Steel
Precision Rating	Not Rated
Bore Shape	Round
Lubrication Type	Hole On Outer Ring
Number of Rows	1

CAD modelleri

Fiyat teklif talebi

Ürün seçimi

Index	Selector	Part Number	Material	Inch/Metric	Type	Style	Weight (lb)	Total Width (inch)	Total Width (mm)	Outside Diameter (inch)	Outside Diameter (mm)	Finish	Series	Bore Size (inch)	Bore Size (mm)	Dynamic Load Rating (lbf)	Dynamic Load Rating (N)	Static Load Rating (lbf)	Static Load Rating (N)	Enclosure	Operating Temperature (Min) ºC	Operating Temperature (Min) 35 ºF	Operating Temperature (Max) ºC	Operating Temperature (Max) 36 ºF	Fillet Radius/Chamfer (inch)	Fillet Radius/Chamfer (mm)	Speed (Max) rpm	Cage Material	Precision Rating	Bore Shape	Lubrication Type	Number of Rows
1	1	TJ7470111D	52100 Bearing Quality Steel	Inch	Unsealed	Caged Needle Bearing with 2 rollers per cage pocket	0.3	1.125	28.58	1.9375	49.21	Chrome Steel	TandemRoller®	1.2910	32.79	21500	95637	12400	55158	Open	-40	-40	148.9	300	0.035	0.89		Steel	Not Rated	Round	Hole On Outer Ring	1
2	2	TJ7470211D	52100 Bearing Quality Steel	Inch	Unsealed	Caged Needle Bearing with 2 rollers per cage pocket	0.4	1.250	31.75	2.3220	58.98	Chrome Steel	TandemRoller®	1.5010	38.13	24700	109871	15200	67613	Open	-40	-40	148.9	300	0.035	0.89		Steel	Not Rated	Round	Hole On Outer Ring	1
3	3	TJ74765D	52100 Bearing Quality Steel	Inch	Unsealed	Caged Needle Bearing with 2 rollers per cage pocket	0.65	1.000	25.40	1.6875	42.86	Chrome Steel	TandemRoller®	1.0640	27.03	14100	62720	9100	40479	Open	-40	-40	148.9	300	0.035	0.89		Steel	Not Rated	Round	Hole On Outer Ring	1
4	4	TJ6770	52100 Bearing Quality Steel	Inch	Unsealed	Caged Double Needle Bearing	6.72	2.500	63.5	6	152.4	Chrome Steel	TandemRoller®	4.5	114.3	55400	246431	137000	609406	Open	-40	-40	148.9	300	0.035	0.89	2600	Steel	Not Rated	Round	Hole On Outer Ring	1
5	5	TJ6769	52100 Bearing Quality Steel	Inch	Unsealed	Caged Double Needle Bearing	6.3	2.250	57.15	6	152.4	Chrome Steel	TandemRoller®	4.5	114.3	49600	220632	119000	529338	Open	-40	-40	148.9	300	0.035	0.89	2600	Steel	Not Rated	Round	Hole On Outer Ring	1
6	6	TJ6919	52100 Bearing Quality Steel	Inch	Unsealed	Caged Double Needle Bearing	10.44	3.000	76.2	7	177.8	Chrome Steel	TandemRoller®	5.5	139.7	74200	330058	213000	947471	Open	-40	-40	148.9	300	0.035	0.89	2100	Steel	Not Rated	Round	Hole On Outer Ring	1

Tedarikçi ile iletişim kurun

Roller Bearing Company Inc.

Manufacturer of bearings for aerospace applications. Types of bearings include ball, roller, plain, journal and self-lubricating bearings. Cam followers, collets, toolholders, pins, shafts, rollers, rod ends and swage tubes are also available. Suitable for horizontal and vertical stabilizers, spoilers, flaps, slats, doors, speed brakes, radars and various other applications. Made in USA.
