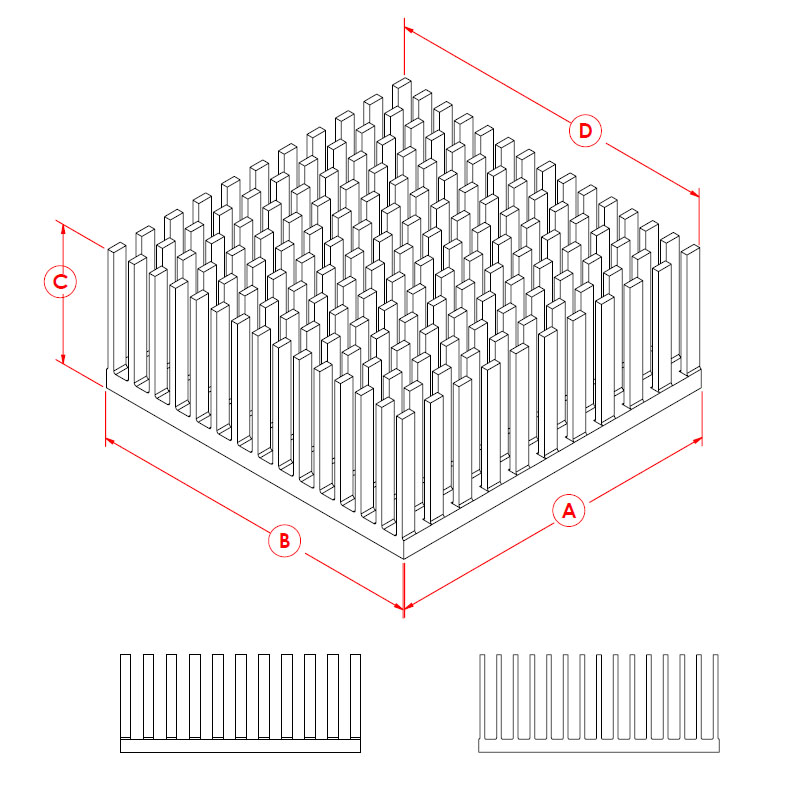

10.0 x 10.0 x 13.0 mm BGA Heat Sink (High Aspect Ratio Ext.) Custom Pin Fin
| Manufacturer | Advanced Thermal Solutions |
|---|---|
| Description | 10.0 x 10.0 x 13.0 mm BGA Heat Sink (High Aspect Ratio Ext.) Custom Pin Fin |
| Manufacturer Part Number | ATS010010013-PF-1L |
| Lifecycle Status | ACTIVE |
| Length (mm) | 10.0 |
| Width (mm) | 10.0 |
| Height (mm) | 13.0 |
| Fin Tip to Fin Tip (mm) | 10.0 |
| TIM | N/A |
| FINISH | BLACK-ANODIZED |
| Thermal Resistance (R,°C/W Unducted Flow) at 200 ft/min. (1,0 m/s) | 26.1 |
| Thermal Resistance (R,°C/W Unducted Flow) at 300 ft/min. (1,5 m/s) | 21.7 |
| Thermal Resistance (R,°C/W Unducted Flow) at 400 ft/min. (2,0 m/s) | 19.0 |
|---|---|
| Thermal Resistance (R,°C/W Unducted Flow) at 500 ft/min. (2,5 m/s) | 17.2 |
| Thermal Resistance (R,°C/W Unducted Flow) at 600 ft/min. (3,0 m/s) | 15.8 |
| Thermal Resistance (R,°C/W Unducted Flow) at 700 ft/min. (3,5 m/s) | 14.8 |
| Thermal Resistance (R,°C/W Unducted Flow) at 800 ft/min. (4,0 m/s) | 13.9 |
| Thermal Resistance (R,°C/W Ducted Flow) at 200 ft/min. (1,0 m/s) | 19.1 |
| Thermal Resistance (R,°C/W Ducted Flow) at 300 ft/min. (1,5 m/s) | 16.2 |
| Thermal Resistance (R,°C/W Ducted Flow) at 400 ft/min. (2,0 m/s) | 14.3 |
| Thermal Resistance (R,°C/W Ducted Flow) at 500 ft/min. (2,5 m/s) | 13.1 |
| Thermal Resistance (R,°C/W Ducted Flow) at 600 ft/min. (3,0 m/s) | 12.1 |
| Thermal Resistance (R,°C/W Ducted Flow) at 700 ft/min. (3,5 m/s) | 11.3 |
| Thermal Resistance (R,°C/W Ducted Flow) at 800 ft/min. (4,0 m/s) | 10.7 |
