Blickle

Kola + Kladky

127 výsledky

Vytřídit podle

B-GSPO 60K

Pressed steel fixed castor, medium duty design, with top plate fitting, heavy duty wheel made of compressed cast nylon

Blickle

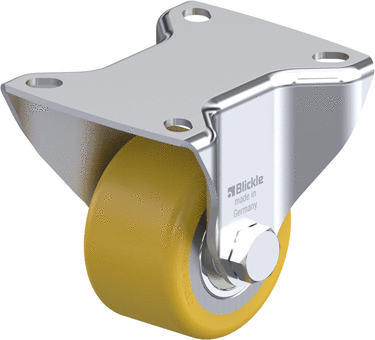

B-VSTH 60K

Pressed steel fixed castor, medium duty design, with top plate fitting, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with steel wheel centre

Blickle

BH-VSTH 80K

Pressed steel fixed castor, heavy duty design, with top plate fitting, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with steel wheel centre

Blickle

BK-GSPO 65K

Pressed steel fixed castor, heavy duty design, with top plate fitting, heavy duty wheel made of compressed cast nylon

Blickle

BK-VSTH 65K

Pressed steel fixed castor, heavy duty design, with top plate fitting, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with steel wheel centre

Blickle

BOD-SE 80K

Heavy duty welded steel twin wheel fixed castor Heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with steel wheel centre

Blickle

HRIG-POA 45G

Levelling castor, with integrated truck lock and bolt hole, nylon wheel

Blickle

HRIG-POA 50G

Levelling castor, with integrated truck lock and bolt hole, nylon wheel

Blickle

HRIG-POA 63G

Levelling castor, with integrated truck lock and bolt hole, nylon wheel

Blickle

HRIG-POA 72G

Levelling castor, with integrated truck lock and bolt hole, nylon wheel

Blickle

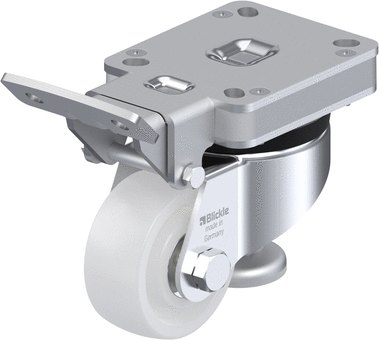

HRLH-SPO 75K

Levelling castor, with integrated truck lock and top plate fitting, nylon heavy duty wheel

Blickle

HRLHD-SPO 75K

Levelling castor, with integrated truck lock and top plate fitting, nylon heavy duty wheel

Blickle

HRLK-ALST 100K

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting, heavy duty wheel, with Blickle Softhane® polyurethane tread, with aluminium wheel centre

Blickle

HRLK-ALST 82K

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting Heavy duty wheel, with Blickle Softhane® polyurethane tread, with aluminium wheel centre

Blickle

HRLK-ALTH 100K

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre

Blickle

HRLK-ALTH 80K

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre

Blickle

HRLK-ALTH 80K-F

Levelling castor, with fixed foot and height-adjustable wheel, with top plate fitting, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre

Blickle

HRLK-ALTH 80K-HN

Levelling castor, with swivelling operating and release levers, with top plate fitting, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre

Blickle

HRLK-PO 100G

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting, nylon wheel

Blickle

HRLK-PO 100G-VS

Pressed steel height adjustment castor, with adjustment screw, heavy duty design, with top plate fitting, nylon wheel

Blickle

HRLK-PO 100KA

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting Nylon wheel, with synthetic thread guard

Blickle

HRLK-PO 75G

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting Nylon wheel

Blickle

HRLK-PO 80G-F

Levelling castor, with fixed foot and height-adjustable wheel, with top plate fitting, nylon wheel

Blickle

HRLK-PO 82G

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting Nylon wheel

Blickle

HRLK-PO 82G-HN

Levelling castor, with swivelling operating and release levers, with top plate fitting, nylon wheel

Blickle

HRLK-PO 82G-VS

Pressed steel height adjustment castor, with adjustment screw, heavy duty design, with top plate fitting, nylon wheel

Blickle

HRLK-POEV 100KA

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, with synthetic thread guard

Blickle

HRLK-POEV 82KF

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting Heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, with synthetic thread guard

Blickle

HRLK-SPO 75G

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting, nylon heavy duty wheel

Blickle

HRLK-SPO 75K

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting Nylon heavy duty wheel

Blickle

HRLK-SPO 80G-HN

Levelling castor, with swivelling operating and release levers, with top plate fitting, nylon heavy duty wheel

Blickle

HRLK-SPO 80K

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting Nylon heavy duty wheel

Blickle

HRLSD-GTH 127K

Levelling castor, with integrated truck lock and top plate fitting, welded steel version, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre

Blickle
