Rings & Spades



Manufacturer	TE Connectivity

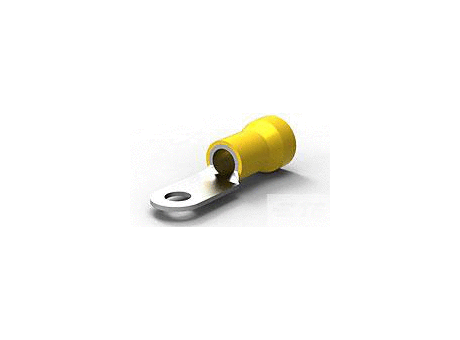

Description	TERMINAL R PG 4 1/4
Manufacturer Part Number	52043-5
Product Page	http://www.te.com/usa-en/product-52043-5.html?te_bu=Cor&te_type=other&te_campaign=trp_glo_buylink-pdp&elqCampaignId=29714
Wire Insulation Support	With
Sealable	No
Operating Temperature Range [°C]	105
Operating Temperature Range [°F]	221
Stud Diameter [mm]	6.73
Stud Diameter [in]	.265
Terminal & Splice Style	Ring Tongue
Terminal Angle	Straight
Wire Size [mm²]	21.2
Wire Size [AWG]	4
Insulated	Yes
Support Style	Non-Insulation Support
Wire Size [CMA]	33100 – 52600
Material Thickness [mm]	1.22

Material Thickness [in]	.048
Overall Length [mm]	49.479
Overall Length [in]	1.948
Tongue Thickness [mm]	1.22
Tongue Thickness [in]	.048
Terminal Type	Ring Tongue
Government Qualified	No
Stud Size	M6
Packaging Method	Tape Mounted
Terminal Orientation	Offset
Barrel Type	Closed Barrel
Plating Material	Tin
Wire/Cable Type	Regular Wire
Heavy Duty	No
Wire Insulation Diameter (Max) [mm]	13.08
Wire Insulation Diameter (Max) [in]	.515
Wire Insulation Diameter [mm]	13.08
Wire Insulation Diameter [in]	.515
