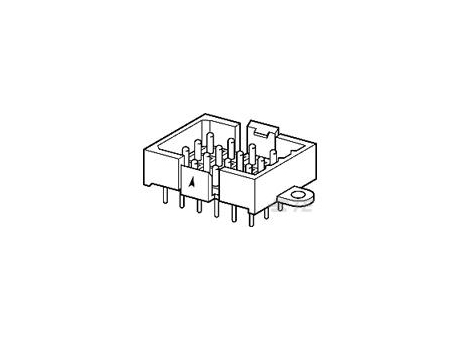

Standard Rectangular Connectors



Manufacturer	TE Connectivity
Description	SKT HDR ASSY,9P,MMATE LF
Manufacturer Part Number	1986647-1
Product Page	https://www.te.com/usa-en/product-1986647-1.html?te_bu=Cor&te_bu=Cor&te_type=other&te_campaign=trp_glo_buylink-pdp&elqCampaignId=29714
Series	SKT
Connector System	Wire-to-Board
Connector & Contact Terminates To	Printed Circuit Board
Number of Positions	9
PCB Mount Retention	With
Product Type	Connector
Connector Style	Receptacle
Mating Retention	With
Mating Retention Type	Connector Lock
Connector Type	Header

Packaging Method	Box & Tray
Packaging Quantity	70
Centerline (Pitch) [in]	.197
PCB Mount Retention Type	Mounting Hole
Termination Method to Printed Circuit Board	Through Hole - Solder
PCB Mount Orientation	Vertical
Tail Length [MM]	4.6
Tail Length [in]	.181
Keying	None
Coaxial Socket	Without
Post Type	Solder Post
Connector Configuration	Square Grid
Panel Mount Feature Type	Mounting Ears

CAD models

Request for quotation

Product selection

Index	Selector	Manufacturer Part Number	Description	Series	Connector System	Connector & Contact Terminates To	Number of Positions	PCB Mount Retention	Product Type	Connector Style	Mating Retention	Mating Retention Type	Connector Type	Packaging Method	Packaging Quantity	Centerline (Pitch) [in]	PCB Mount Retention Type	Termination Method to Printed Circuit Board	PCB Mount Orientation	Tail Length [MM]	Tail Length [in]	Keying	Coaxial Socket	Post Type	Connector Configuration	Panel Mount Feature Type
1	1	1986647-1	SKT HDR ASSY,9P,MMATE LF	SKT	Wire-to-Board	Printed Circuit Board	9	With	Connector	Receptacle	With	Connector Lock	Header	Box & Tray	70	.197	Mounting Hole	Through Hole - Solder	Vertical	4.6	.181	None	Without	Solder Post	Square Grid	Mounting Ears
