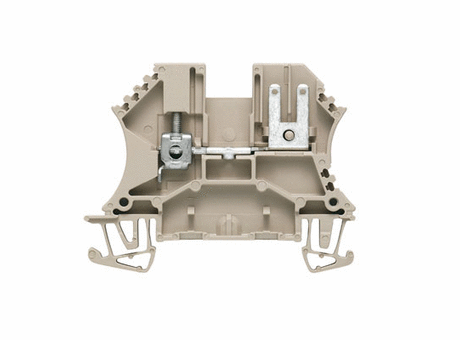

WDU 2.5 F 2X2.8

Manufacturer	Weidmüller
Description	W terminal feed-through terminal, Feed-through terminal, Rated cross-section: 2.5 mm², Screw connection, Direct mounting
Part Number	1021800000

Modelos CAD

Solicitud de presupuesto

Selección de producto

Index	Selector	Part Number	Description	Order No.	Type	Version	GTIN (EAN)	Rated cross-section (mm²)	Rated impulse withstand voltage	Rated current (A)	Current at maximum wires (A)	Standards	Pollution severity	Type of connection	Stripping length (mm)	Blade size	Connection direction	Number of connections	Clamping range, rated connection, min. (mm²)	Clamping range, rated connection, max. (mm²)	Gauge to IEC 60947-1	Wire connection cross section, solid core, max. rated connection (mm²)	Wire connection cross section, solid core max. rated connection (mm²)	Wire connection cross section, finely stranded, max. (mm²)	Wire connection cross-section, finely stranded, min. (mm²)	Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min. (mm²)	Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max. (mm²)	Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min. (mm²)	Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max. (mm²)	Installation advice	Explosion-tested version	Type of mounting	Product image-01 (master picture)	Material	Colour	Flammability class UL 94	Number of levels	Levels cross-connected internally	End cover plate required	Length (mm)	Width (mm)	Height of lowest version (mm)	UNSPSC	ETIM 2.0	ETIM 3.0	eClass 4.1	eClass 5.1	eClass 6.0	Continuous operating temp., min. (°C)	Continuous operating temp., max. (°C)	Wire cross section max. (CSA)	Wire cross section min. (CSA)	Wire connection cross section, stranded, rated connection, min. (mm²)	Wire connection cross section, stranded, rated connection, max. (mm²)	Voltage size C (CSA)	Current size C (CSA)	Height (mm)	Voltage size C (UR)	Current size C (UR)	Rated voltage (V)	Type of connection 2
1	1	1021800000	W terminal feed-through terminal, Feed-through terminal, Rated cross-section: 2.5 mm², Screw connection, Direct mounting	1021800000	WDU 2.5 F 2X2.8	W terminal feed-through terminal, Feed-through terminal, Rated cross-section: 2.5 mm², Screw connection, Direct mounting	4008190046811	2.5	6 kV	12	12	IEC 60947-7-1	3	Screw connection	10	0.6 x 3.5 mm	on side	1	0.13	4	A3	0.5	4	4	0.5	0.5	2.5	0.5	2.5	Direct mounting	No	Snap-on	10218000009999.jpg	Wemid	Dark beige	V-0	1	No	Yes	60	5.1	47	30-21-18-11	EC000897	EC000897	27-14-11-22	27-14-11-20	27-14-11-20	-50	120	12 AWG	26 AWG	1.5	4	300 V	10 A	46.25	300 V	16 A	500	Flat-blade connection
