CNC control units iOP-19-TFT / iOP-19-CPU

CADモデル

製品セレクション

Index	Selector	Description	Part no.	Protection class	Dimensions (without keyboard) (mm)	Weight approx. (kg)
1	1	Control panel iOP-19-TFT, RAL 3011 (red)	371100 1000	IP 50	W 480 x D 123 x H 450	15
2	10	Control panel iOP-19-CPU, RAL 3011 (red)	371101 1000	IP 40 / IP 50	W 480 x D 196 x H 450	16
3	14	German keyboard, RAL 3011 (red)	371200 0001	IP 68	-	-
4	15	English keyboard, RAL 3011 (red)	371200 0002	IP 68	-	-
5	16	Swivel arm for profile PS 50	371050 2020	-	-	-
6	17	Swivel arm for profile PS 80	371050 2040	-	-	-
7	18	Swivel arm for profile 100	371050 2050	-	-	-
8	19	Swivel arm for profile 125	371050 2060	-	-	-
9	20	Swivel arm for profile PS 140	371050 2070	-	-	-
10	21	Swivel arm for profile PV 150	371050 2080	-	-	-

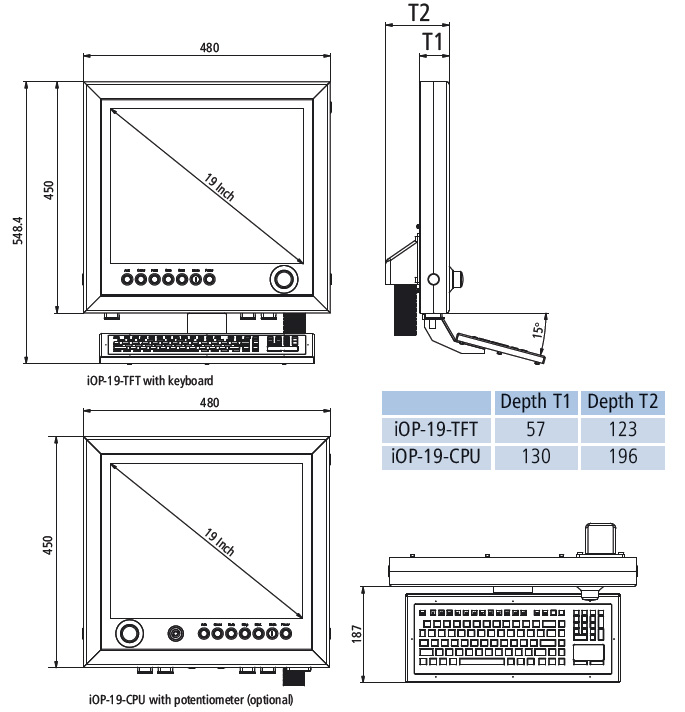

Mechanics
