PVC-C: 3D-modellen - SOLIDWORKS, Inventor, CATIA V5, AutoCAD, STEP, STL en nog veel meer

GIC (A)

90° elbow with solvent weld sockets (fig. A)

FIP

GIC (B)

90° elbow with solvent weld sockets (fig. B)

FIP

HIC

45° elbow with solvent weld sockets

FIP

MIC

Solvent weld double socket

FIP

TIC

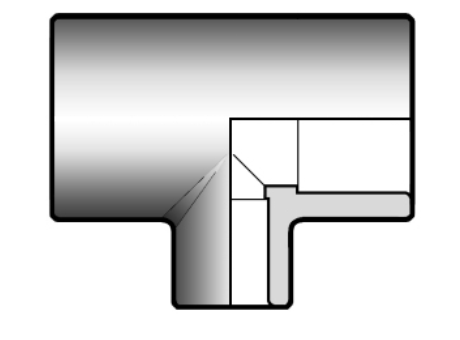

90° Tee with solvent weld sockets

FIP

TRIC

90° reducing Tee with reduced branch and solvent weld sockets

FIP

CIC

End cap with solvent weld socket

FIP

BIC

Union with solvent weld socket, O-Ring in EPDM or FPM

FIP

EFC

Union nut with BSP thread for union types BIC, BIFC, BFC, BLC, BIRC, BIFOC, BIROC, BIFXC, BIRXC.

FIP

F/BIC

Union bush for solvent welding, metric series

FIP

Q/BAC

Union end for solvent welding, ASTM series

FIP

DIC (A)

Reducing bush with solvent weld spigot (d) and solvent weld socket (d1 reduced) (fig. A)

FIP

DIC (B)

Reducing bush with solvent weld spigot (d) and solvent weld socket (d1 reduced) (fig. B)

FIP

QRC

Stub with serrated face according to DIN 8063 PN 10/16 with solvent weld socket, for use with flat gasket (for gasket sizes, see QHV)

FIP

QHV/X

Flat gasket in EPDM and FPM for flanges according to DIN 2501, EN 1092

FIP

QHV/Y

Flat gasket in EPDM for flanges according to DIN 2501, EN 1092, self-centring for flanges drilled PN 10/16

FIP

ODC

Backing ring in PVC-C for stubs QRC EN/ISO/DIN. Drilling: PN10 up to DN100

FIP

ODB

Steel core backing ring, PP/FRP coated, according to EN/ISO/DIN for stubs QRC, Drilling: PN 10/16 up to DN 150.

FIP

OAB

Steel core backing ring, PP/FRP coated according to ANSI B16.5 cl.150 for stubs QRC

FIP

ODBC

Steel core blind flange, PP/FRP coated, according to EN/ISO/DIN Drilling: PN 10/16

FIP

OABC

Steel core blind flange, PP/FRP coated, according to ANSI B16.5 cl.150

FIP

Q/BFC

Union end for BSP female thread

FIP

Q/BIC

Union end for solvent welding, metric series

FIP

ODT

Wedge profile backing ring, with metal core and a PP-GR coating. According to EN/ISO/DIN to be used with stub flange QRC. Drilled:PN 10/16 up to DN 150 - PN 10 from DN 200.

FIP

ODT-SW

Wedge profile backing ring, with metal core and a PP-GR coating. According to EN/ISO/DIN for stub QRV and QPV. Drilled: PN10/16 up to d180, PN10 from d200.

FIP
